DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierZS Immersion SensorsZSI-B-2-6-B

Carrier Immersion Temperature Sensor (Carrier i-Vu Building Automation System). Model ZSI. Temperature Range: -40° to 212° F (-40° to 100° C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZSI-B-2-6-B.pdfData sheet

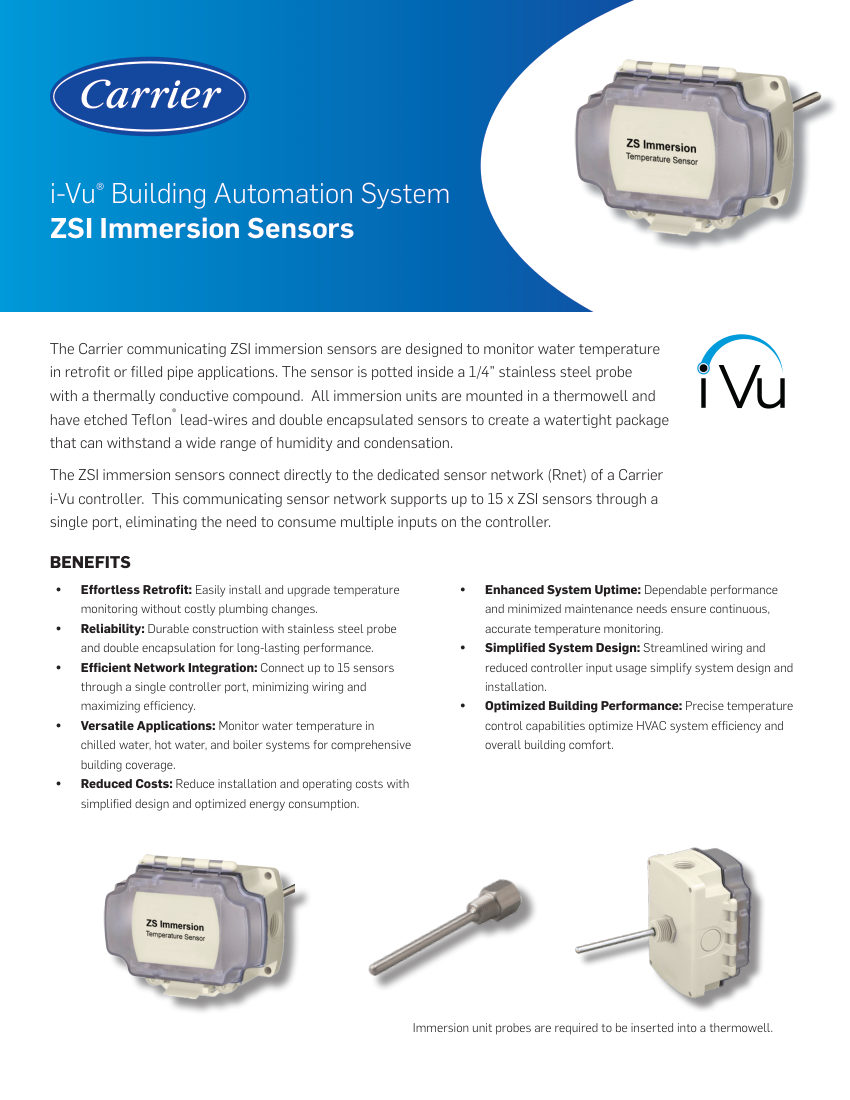

Carrier ZSI-B-2-6-B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
ZSI-B-2-6-B
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZSI-B-2-6-B
DescriptionCarrier Immersion Temperature Sensor (Carrier i-Vu Building Automation System). Model ZSI. Temperature Range: -40° to 212° F (-40° to 100° C)
Accuracy±1.3° F (0.72° C)
Probe Diameter0.25" (0.64 cm)
Probe Length Options2 in. or 4 in.. material: 304 Stainless Steel probe, Polycarbonate enclosure
Connection size1/2 in. NPSM
End connectionRnet (4-conductor)
MountingThermowell
Dimensions5" x 4.15" x 2.5" (Enclosure)
ComplianceFCC Part 15-Subpart B-Class B, CE, NEMA 4, IP66.

Also cataloged as: ZSI-S-2-6-B, ZSI-B-4-6-B, ZSI-S-4-6-B, ZSI-B-8-6-B, ZSI-S-8-6-B, ZSI-T-2-WSS-B, ZSI-T-4-WSS-B, ZSI-T-2-MSS-B, ZSI-T-4-MSS-B, ZSI-T-8-MSS-B, ZSI-T-2-MB-B
