CarrierZS Outdoor Air SensorZSO-S-2-6-B

Carrier Outdoor Air Temperature/Humidity Sensor (Outdoor Air Sensor). Model ZSO-S-2-6-B, ZSO-SH-3-6-B. Temperature Range: -40° to 158° F (-40° to 70° C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZSO-S-2-6-B.pdfData sheet

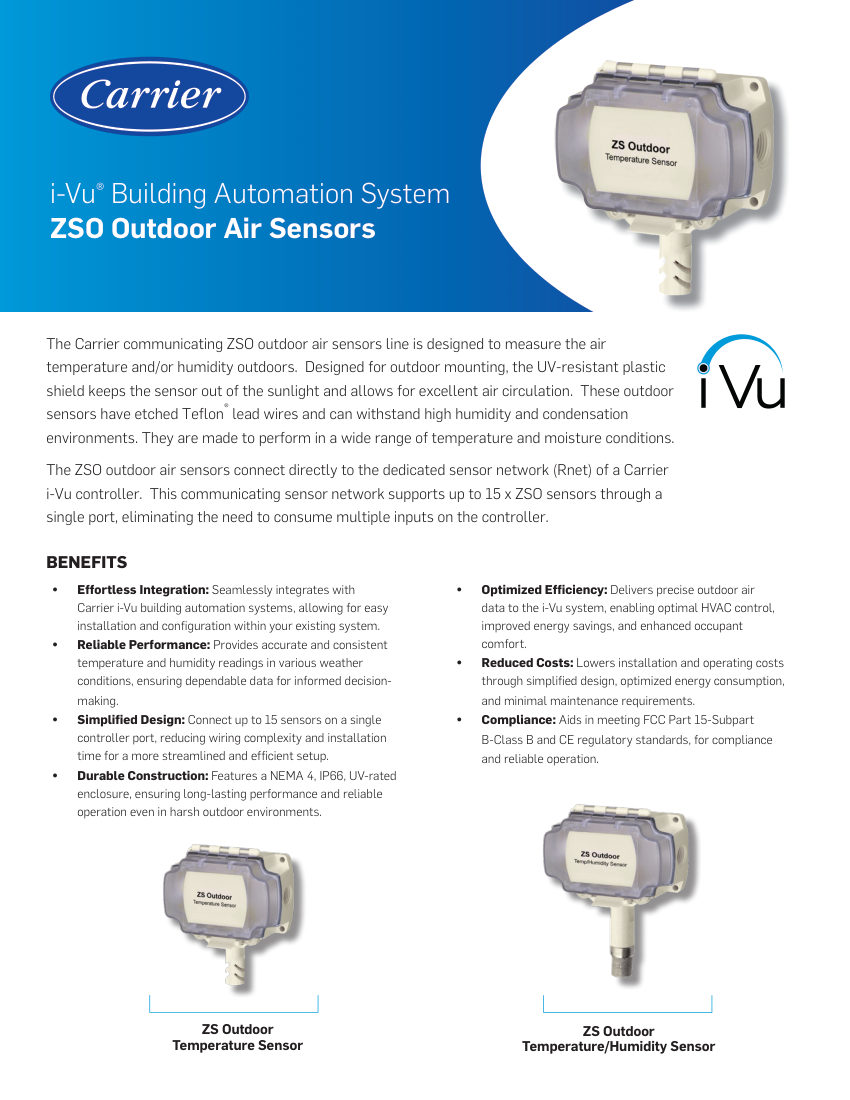

Carrier ZSO-S-2-6-B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
ZSO-S-2-6-B
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZSO-S-2-6-B
DescriptionCarrier Outdoor Air Temperature/Humidity Sensor (Outdoor Air Sensor). Model ZSO-S-2-6-B, ZSO-SH-3-6-B. Temperature Range: -40° to 158° F (-40° to 70° C)
Humidity Range10% to 90%
Temperature Accuracy±1.3° F (0.72° C)
Humidity Accuracy±2.0% typical. material: Polycarbonate (UL94V-0), ABS, Stainless Steel
Connection size1/2 in. NPT
End connectionRnet (4-conductor)
FinishUV-rated
MountingSide Mounting
Dimensions5 in. x 4-3/32 in. x 2-1/2 in.

Also cataloged as: ZSO-SH-3-6-B
