DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierZS Clamp On SensorsZSS-B-2-6-B

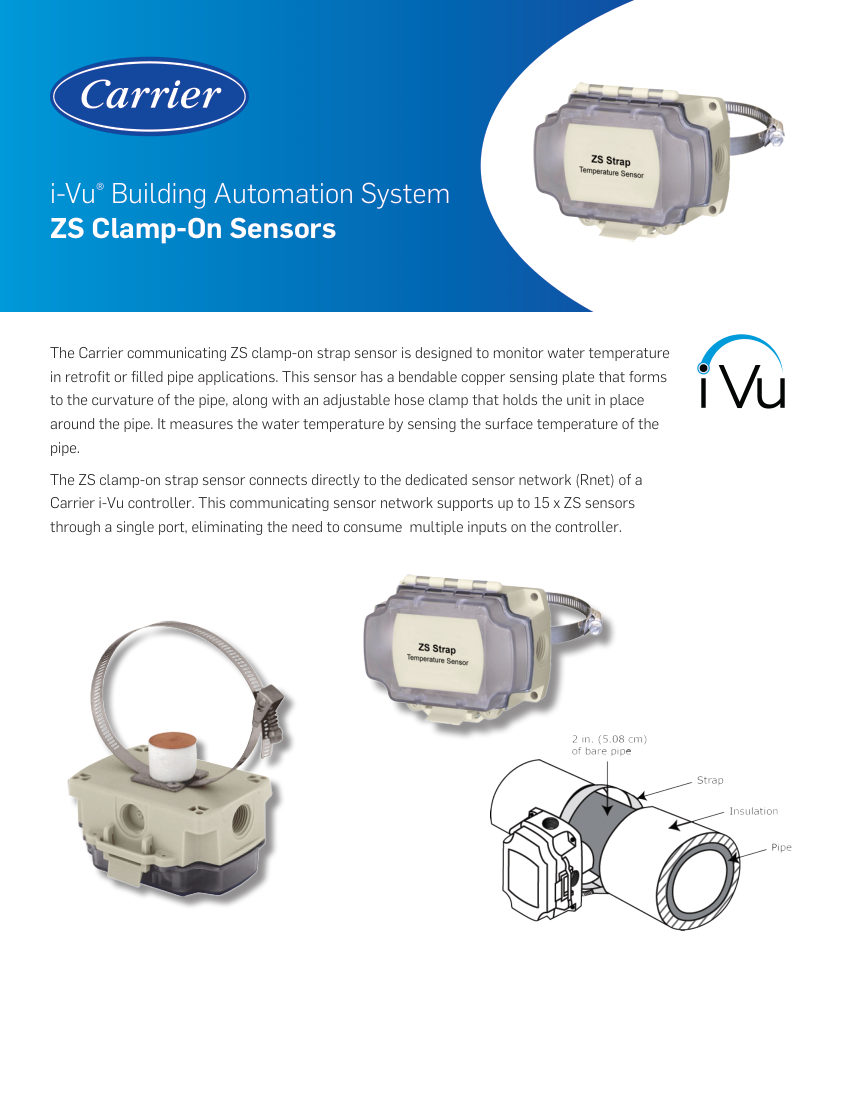

Name: Carrier ZS Clamp On Sensors (ZSS-B-2-6-B)
Brand: Carrier
SKU: ZSS-B-2-6-B

Carrier Clamp-on temperature sensor (Building Automation System). Model ZSS-B-2-6-B. Temperature range: 20° to 120° F (-5° to 50° C)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ZSS-B-2-6-B
Description	Carrier Clamp-on temperature sensor (Building Automation System). Model ZSS-B-2-6-B. Temperature range: 20° to 120° F (-5° to 50° C)
Accuracy	±0.9° F (0.5° C)
Communication speed	115 kbps
Power consumption	12 Vdc @ 6 mA. material: Polycarbonate, copper sensing plate, stainless steel hose clamp
Connection size	2 in. to 4.5 in. pipe diameter (51 mm to 114 mm)
End connection	Rnet (4-conductor)
Mounting	Hose clamp
Dimensions	5 in. x 4.15 in. x 2.5 in. (12.7 cm x 10.54 cm x 6.35 cm)
Compliance	FCC Part 15-Subpart B-Class B, CE, NEMA 4, IP66.
