DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedCTL-SC-08

CertainTeed Pipe Flashing Restoration Detail (Commercial Roofing). Model CTL-SC-08. 3-Course Mastic/Reinforced Mastic application required for critical waterproofing elements; SMARTFAB 500 Polyester Reinforcement minimum 4 inches wide embedded in wet mastic; Maximum mastic thickness is 1/8 inch for Acrylic and 1/4 inch for Silicone; Liquid-applied coating extended up existing flashing to top of pipe. material: SMARTCOAT 300 Series Mastic (Acrylic/Silicone), SMARTFAB 500 Polyester Reinforcement, SMARTCOAT Liquid-Applied Membrane

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCTL-SC-08.pdfData sheet

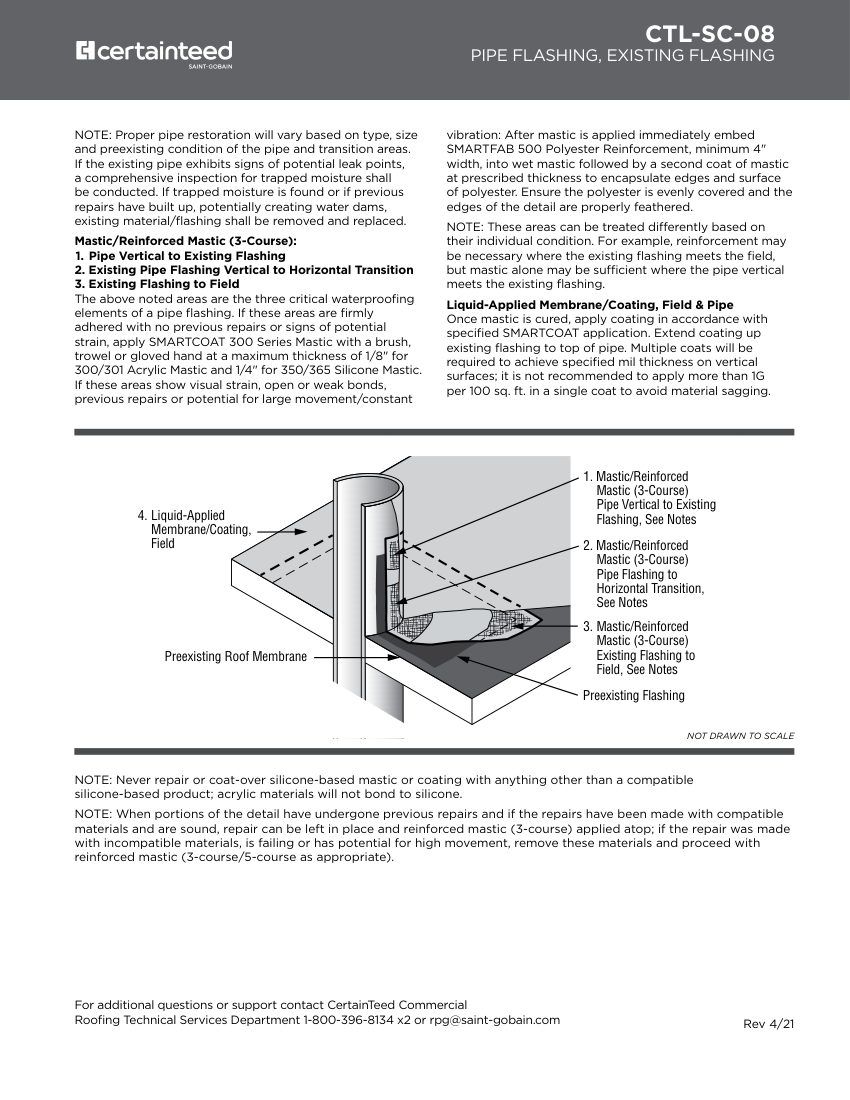

CertainTeed CTL-SC-08 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
CTL-SC-08
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCTL-SC-08
DescriptionCertainTeed Pipe Flashing Restoration Detail (Commercial Roofing). Model CTL-SC-08. 3-Course Mastic/Reinforced Mastic application required for critical waterproofing elements; SMARTFAB 500 Polyester Reinforcement minimum 4 inches wide embedded in wet mastic; Maximum mastic thickness is 1/8 inch for Acrylic and 1/4 inch for Silicone; Liquid-applied coating extended up existing flashing to top of pipe. material: SMARTCOAT 300 Series Mastic (Acrylic/Silicone), SMARTFAB 500 Polyester Reinforcement, SMARTCOAT Liquid-Applied Membrane
DimensionsReinforcement width min 4 inches; Mastic max thicknes
