DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Chicago FaucetsH-G11H-45ABCPT

Chicago Faucets Touch-free faucet (Touchless Faucets). Model H-G11H-45ABCPT. Includes built-in ASSE 1070 thermostatic mixing valve; 40-second run time with safety auto-timeout; Built-in Bluetooth® technology for CF Connect App; Vandal-proof pressure compensating Econo-Flo™ non-aerating laminar spray. material: Cast brass (ECAST®), total lead content ≤ 0.25% by weighted average

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-G11H-45ABCPT.pdfData sheet

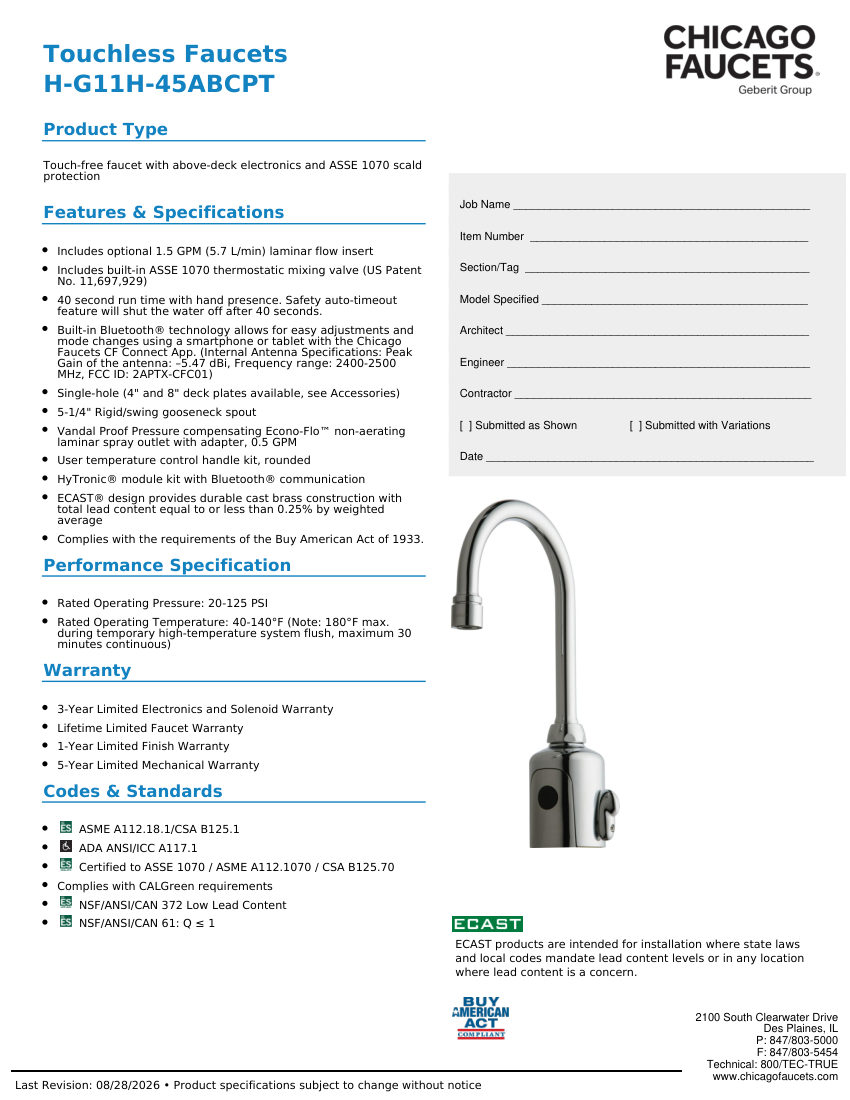

Chicago Faucets H-G11H-45ABCPT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Chicago Faucets
Catalog no.
H-G11H-45ABCPT
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-G11H-45ABCPT
DescriptionChicago Faucets Touch-free faucet (Touchless Faucets). Model H-G11H-45ABCPT. Includes built-in ASSE 1070 thermostatic mixing valve; 40-second run time with safety auto-timeout; Built-in Bluetooth® technology for CF Connect App; Vandal-proof pressure compensating Econo-Flo™ non-aerating laminar spray. material: Cast brass (ECAST®), total lead content ≤ 0.25% by weighted average
Connection sizeSingle-hole (4" and 8" deck plates available)
End connectionFlexible supply hoses included
Pressure Rating20-125 PSI
Flow Rate0.5 GPM (1.9 L/min) standard; 1.5 GPM (5.7 L/min) optional insert; fini
