DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Chicago FaucetsLCF1-AC-A1B3

Chicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-AC-A1B3. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker; Straight serrated nozzle with vacuum breaker; Vandal Proof 2-1/2" Chrome cross handle with button indexed 'CW'; Slow compression operating cartridge, left-hand turn. pressureRating: Water: 20-125 PSI max.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLCF1-AC-A1B3.pdfData sheet

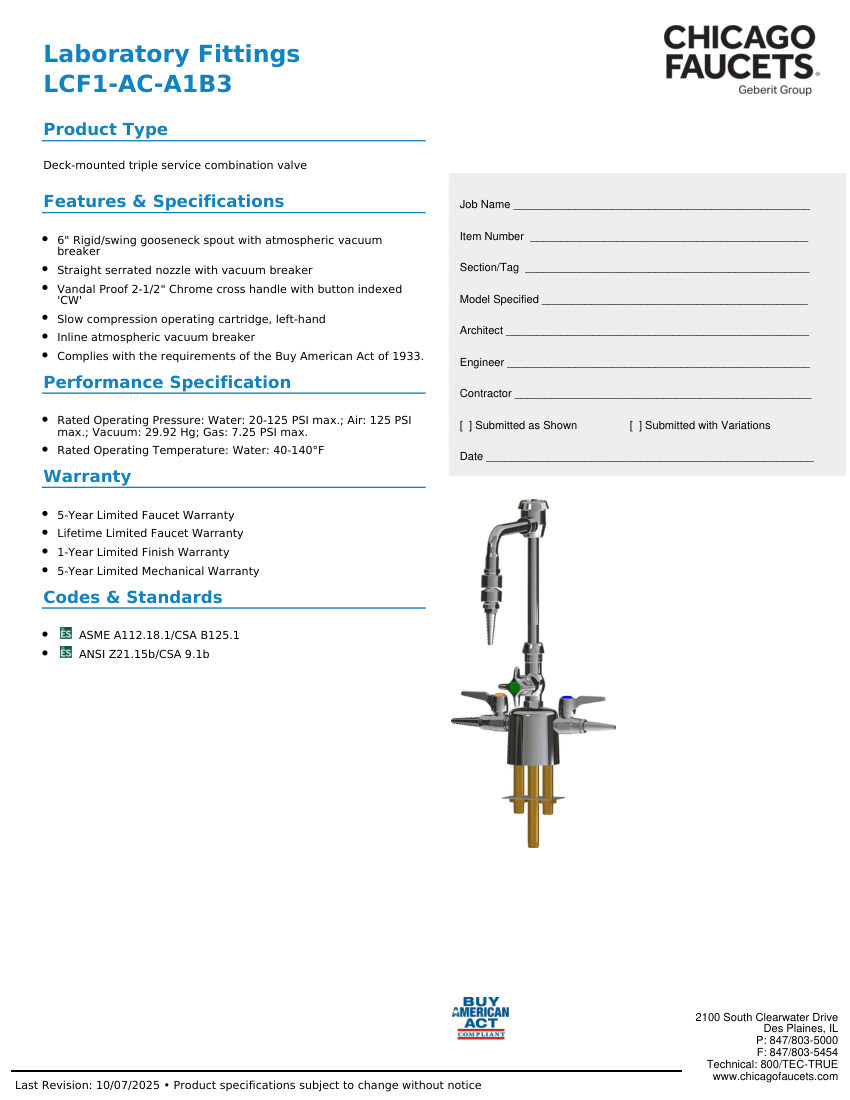

Chicago Faucets LCF1-AC-A1B3 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Chicago Faucets
Catalog no.
LCF1-AC-A1B3
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLCF1-AC-A1B3
DescriptionChicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-AC-A1B3. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker; Straight serrated nozzle with vacuum breaker; Vandal Proof 2-1/2" Chrome cross handle with button indexed 'CW'; Slow compression operating cartridge, left-hand turn. pressureRating: Water: 20-125 PSI max.
Air125 PSI max.
Vacuum29.92 Hg
Gas7.25 PSI max.
FinishPolished chrome
MountingDeck-mounted
Dimensions6" rigid/swing gooseneck spout
ComplianceASME A112.18.1/CSA B125.1, ANSI Z21.15b/CSA 9.1b, Buy American
