DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Chicago FaucetsLCF1-BC-C2A2

Chicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-BC-C2A2. Pressure compensating Softflo® aerator with adapter; Quaturn® Control-A-Flo® compression operating cartridge, right-hand turn; Vandal Proof 4" wristblade handle with color-coded index; Rated operating temperature for water: 40-140°F. pressureRating: Water: 20-125 PSI max.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLCF1-BC-C2A2.pdfData sheet

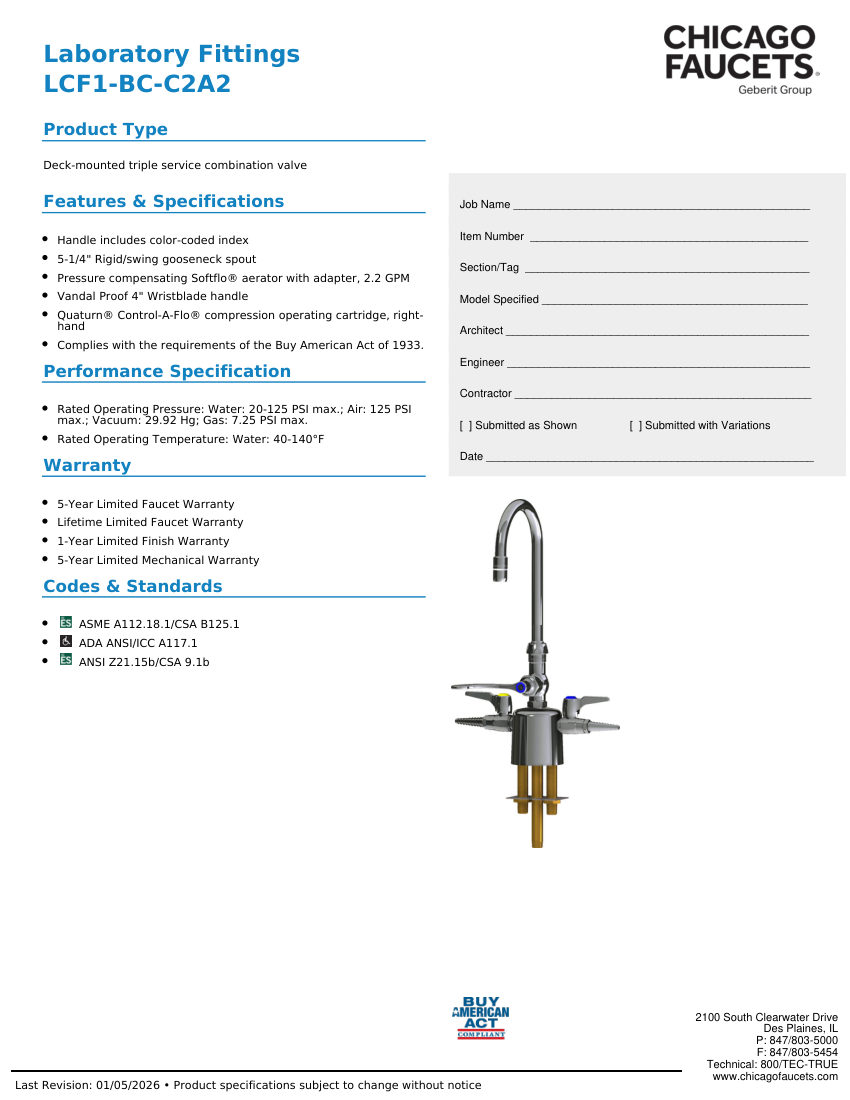

Chicago Faucets LCF1-BC-C2A2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Chicago Faucets
Catalog no.
LCF1-BC-C2A2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLCF1-BC-C2A2
DescriptionChicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-BC-C2A2. Pressure compensating Softflo® aerator with adapter; Quaturn® Control-A-Flo® compression operating cartridge, right-hand turn; Vandal Proof 4" wristblade handle with color-coded index; Rated operating temperature for water: 40-140°F. pressureRating: Water: 20-125 PSI max.
Air125 PSI max.
Vacuum29.92 Hg
Gas7.25 PSI max.
Flow Rate2.2 GPM
FinishPolished chrome
MountingDeck-mounted
Dimensions5-1/4" rigid/swing gooseneck spout; 4" wristblade handle
ComplianceASME A112.18.1
