DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Chicago FaucetsLCF1-CA-C2B1

Chicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-CA-C2B1. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker; Laboratory nozzle with 10 serrations for laboratory hose; Vandal Proof 4" wristblade handle with color-coded index; Quaturn Control-A-Flo compression operating cartridge, right-hand turn. pressureRating: Water: 20-125 PSI max.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLCF1-CA-C2B1.pdfData sheet

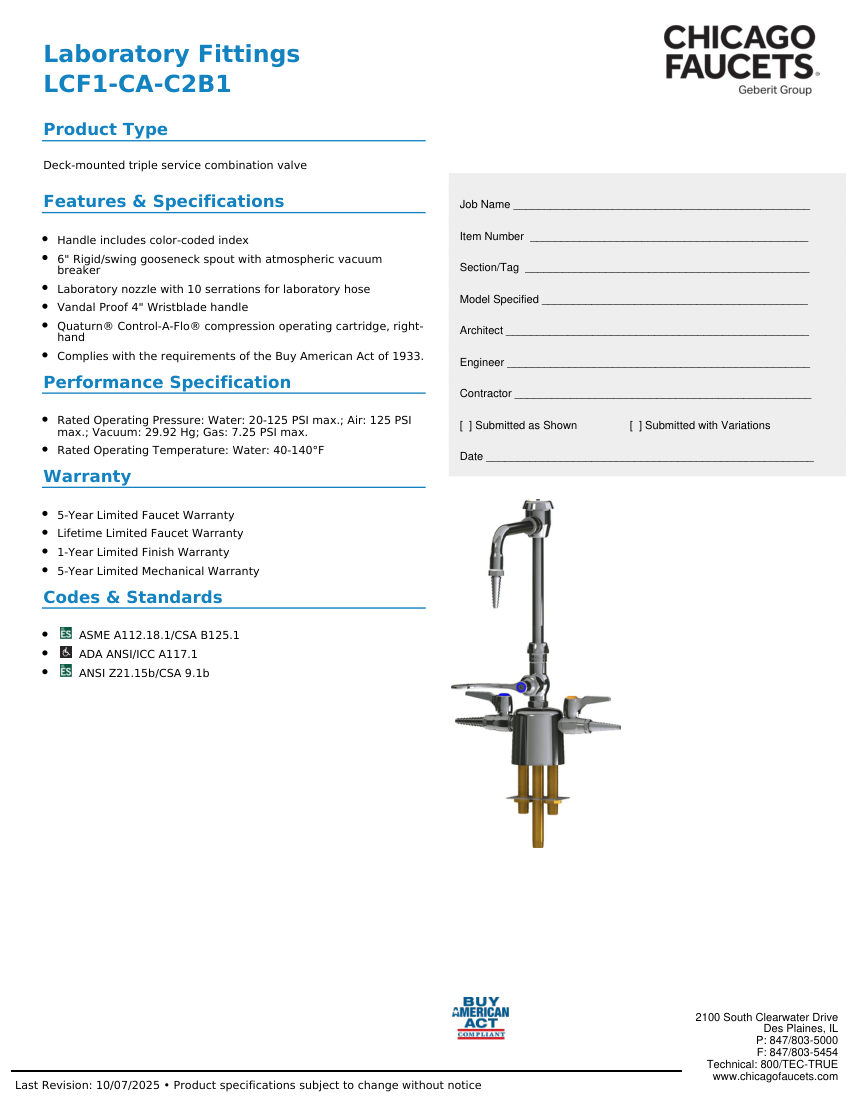

Chicago Faucets LCF1-CA-C2B1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Chicago Faucets
Catalog no.
LCF1-CA-C2B1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLCF1-CA-C2B1
DescriptionChicago Faucets Deck-mounted triple service combination valve (Laboratory Fittings). Model LCF1-CA-C2B1. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker; Laboratory nozzle with 10 serrations for laboratory hose; Vandal Proof 4" wristblade handle with color-coded index; Quaturn Control-A-Flo compression operating cartridge, right-hand turn. pressureRating: Water: 20-125 PSI max.
Air125 PSI max.
Vacuum29.92 Hg
Gas7.25 PSI max.
FinishPolished chrome
MountingDeck-mounted
Dimensions6" spout; 4" handle
ComplianceASME A112.18.1/CSA B125.1, ADA ANSI/ICC A117.1, ANSI
