DIV 23 · HVACHVACCUT SHEET INDEXED
DaikinACNF240516
Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF240516. Cooling Capacity: 24,000 Btu/hr (2 Ton)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Daikin
- Catalog no.
- ACNF240516
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ACNF240516 |
|---|---|
| Description | Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF240516. Cooling Capacity: 24,000 Btu/hr (2 Ton) |
| Blower Motor Rating | 1/4 HP; Min. Circuit Amps (MCA): 25.3 A; Max Overcurrent Protection (MOP): 25 A. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil |
| Connection size | Suction 3/4 inch, Liquid 3/8 inch, Condensate 3/4 inch |
| Flow Rate | 880 / 840 CFM (High / Low) |
| Mounting | Ceiling-Mount |
| Dimensions | 10 x 43-1/2 x 21 in (HxWxD) |
| Compliance | AHRI Certified, ETL Listed. |

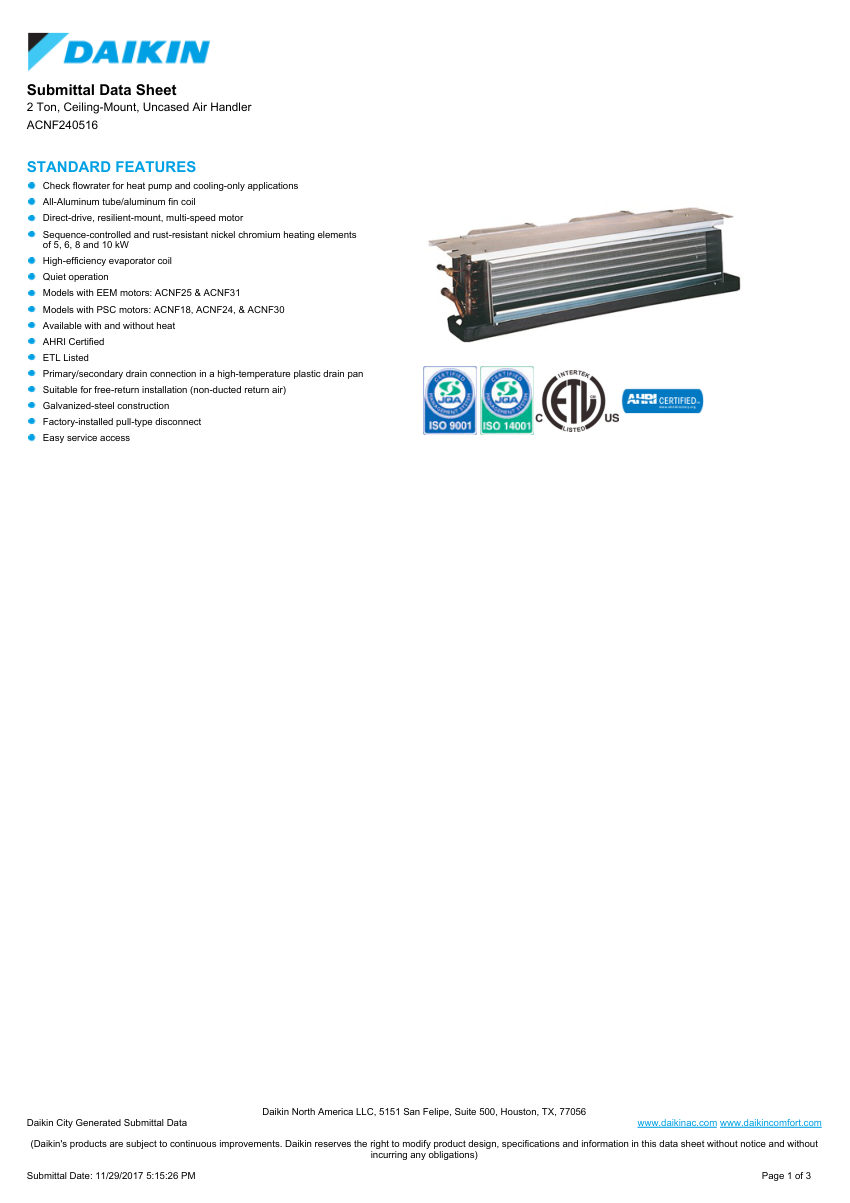

- Official cut sheet, indexed
