DaikinACNF240816

Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF240816. 2 Ton Cooling Capacity (24,000 Btu/hr); 1/4 HP Blower Motor Rating; Direct-drive, resilient-mount, multi-speed motor; High-efficiency evaporator coil. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFACNF240816.pdfData sheet

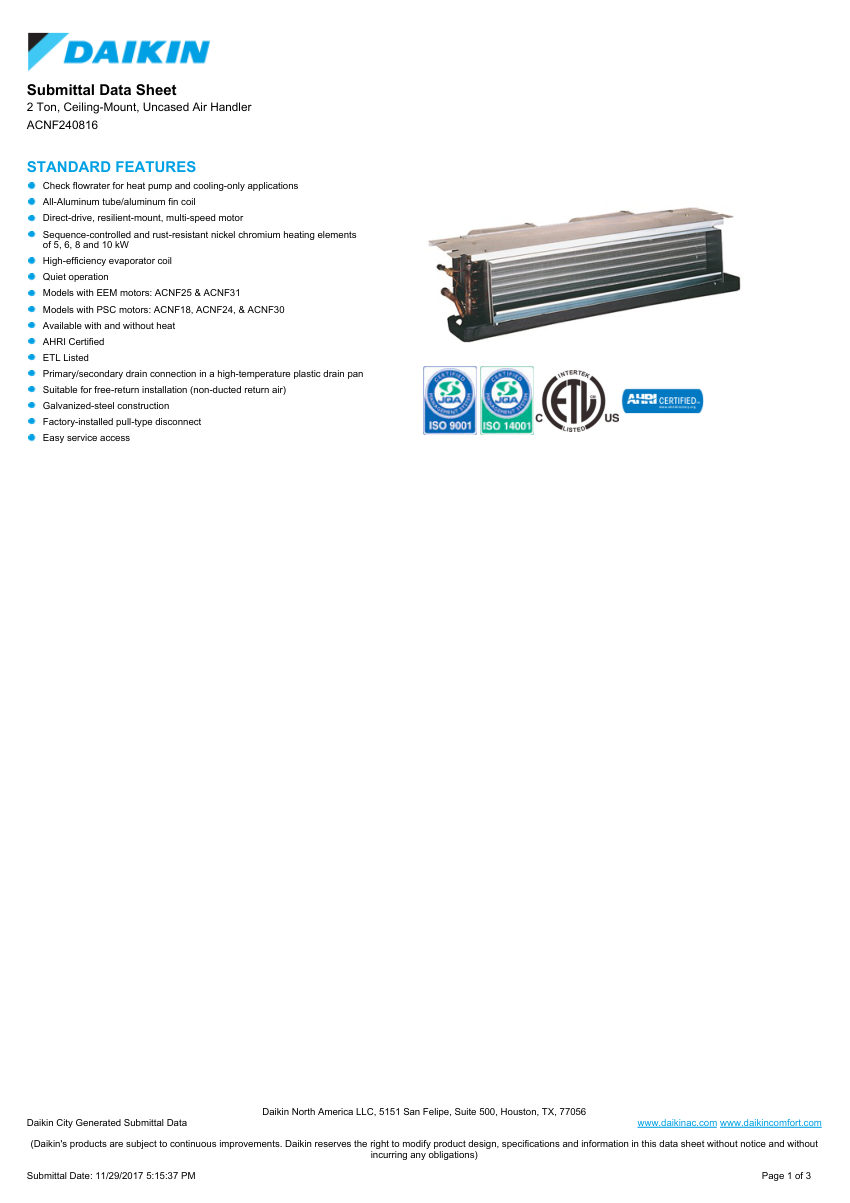

Daikin ACNF240816 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
ACNF240816
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberACNF240816
DescriptionDaikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF240816. 2 Ton Cooling Capacity (24,000 Btu/hr); 1/4 HP Blower Motor Rating; Direct-drive, resilient-mount, multi-speed motor; High-efficiency evaporator coil. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil
Connection sizeSuction 3/4 inch, Liquid 3/8 inch, Condensate 3/4 inch
Flow Rate880 / 840 CFM (High / Low)
MountingCeiling-Mount
Dimensions10 x 43-1/2 x 21 in (HxWxD)
ComplianceAHRI Certified, ETL Listed.
