DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinACNF300016

Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF300016. 2.5 Ton capacity; 30,000 Btu/hr nominal cooling capacity; 1/4 HP blower motor; Direct-drive, resilient-mount, multi-speed motor. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFACNF300016.pdfData sheet

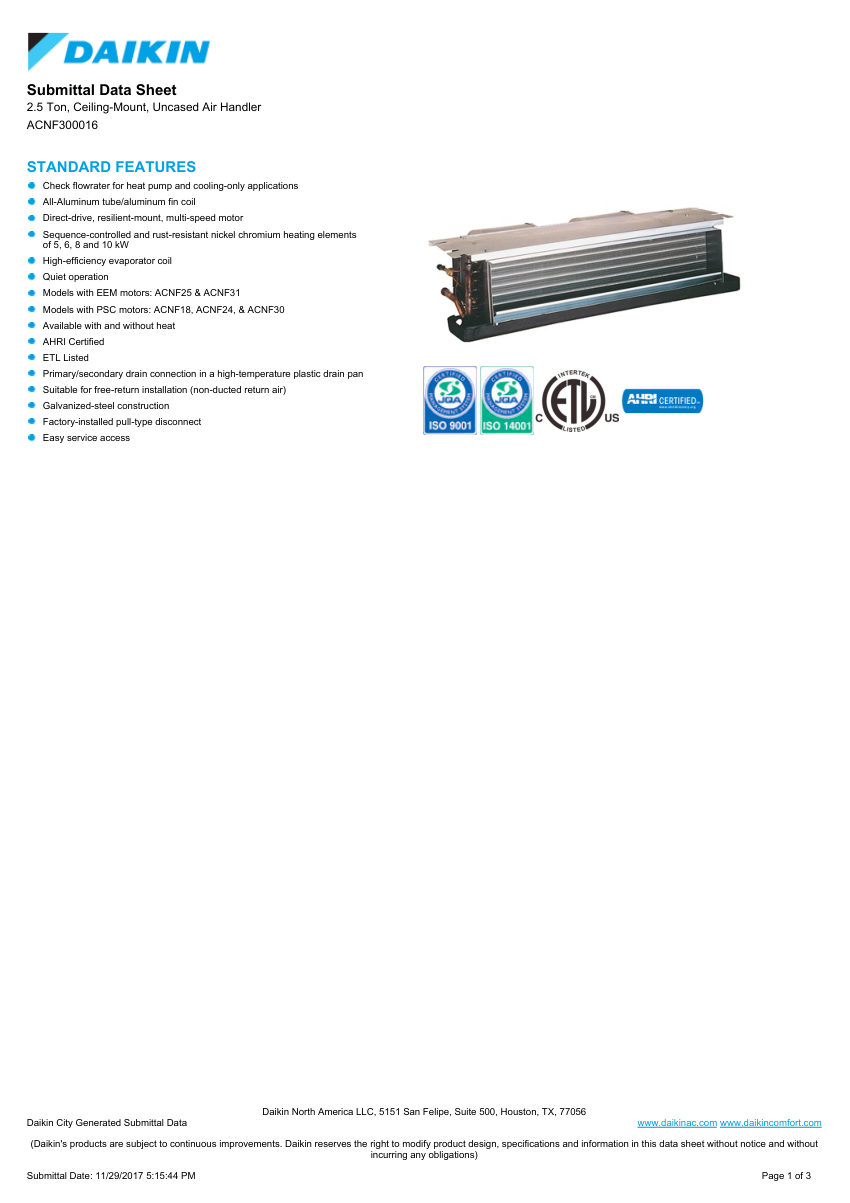

Daikin ACNF300016 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
ACNF300016
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberACNF300016
DescriptionDaikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF300016. 2.5 Ton capacity; 30,000 Btu/hr nominal cooling capacity; 1/4 HP blower motor; Direct-drive, resilient-mount, multi-speed motor. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil
Connection sizeSuction 3/4 inch, Liquid 3/8 inch, Condensate 3/4 inch
MountingCeiling-Mount
Dimensions10 x 49-1/2 x 21 in
ComplianceAHRI Certified, ETL Listed
Voltage208-230 / 60 / 1.
