DaikinACNF300816

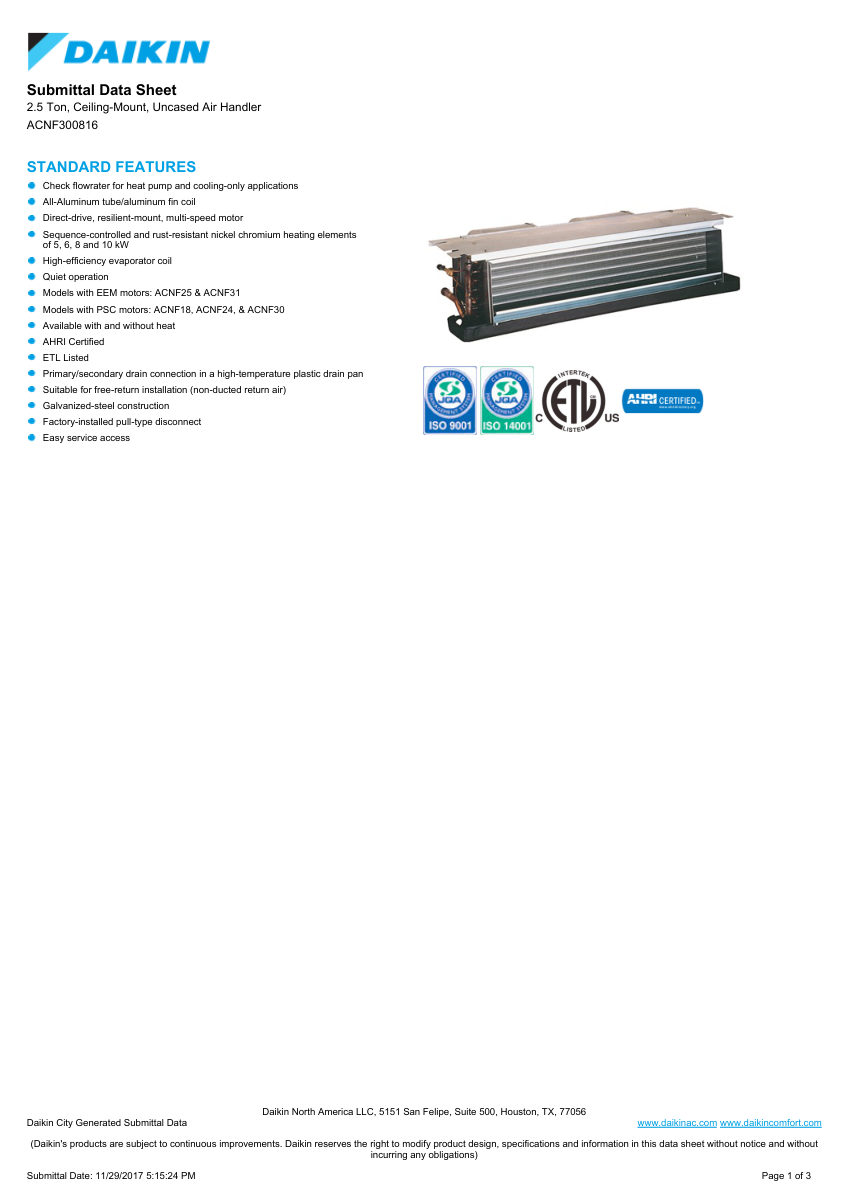

Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF300816. 2.5 Ton capacity
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Daikin
- Catalog no.
- ACNF300816
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ACNF300816 |
|---|---|
| Description | Daikin Ceiling-Mount, Uncased Air Handler (Air Handler). Model ACNF300816. 2.5 Ton capacity |
| Cooling Capacity | 30,000 Btu/hr |
| Blower Motor Rating | 1/4 HP; Direct-drive, resilient-mount, multi-speed motor. material: Galvanized-steel construction, All-Aluminum tube/aluminum fin coil |
| Connection size | Suction 3/4 inch, Liquid 3/8 inch |
| Mounting | Ceiling-Mount |
| Dimensions | 10 x 49-1/2 x 21 in |
| Compliance | AHRI Certified, ETL Listed |
| Voltage | 208-230 / 60 / 1. |
Also cataloged as: ACNF18, ACNF24, ACNF25, ACNF30, ACNF31
