DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSS-DAWSFAWSF18SU1605 AA

Daikin Wall-Mount Air Handler (Air Handler). Model SS-DAWSF. Capacity Range: 1.5 to 3.0 Tons

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAWSF18SU1605-AA.pdfData sheet

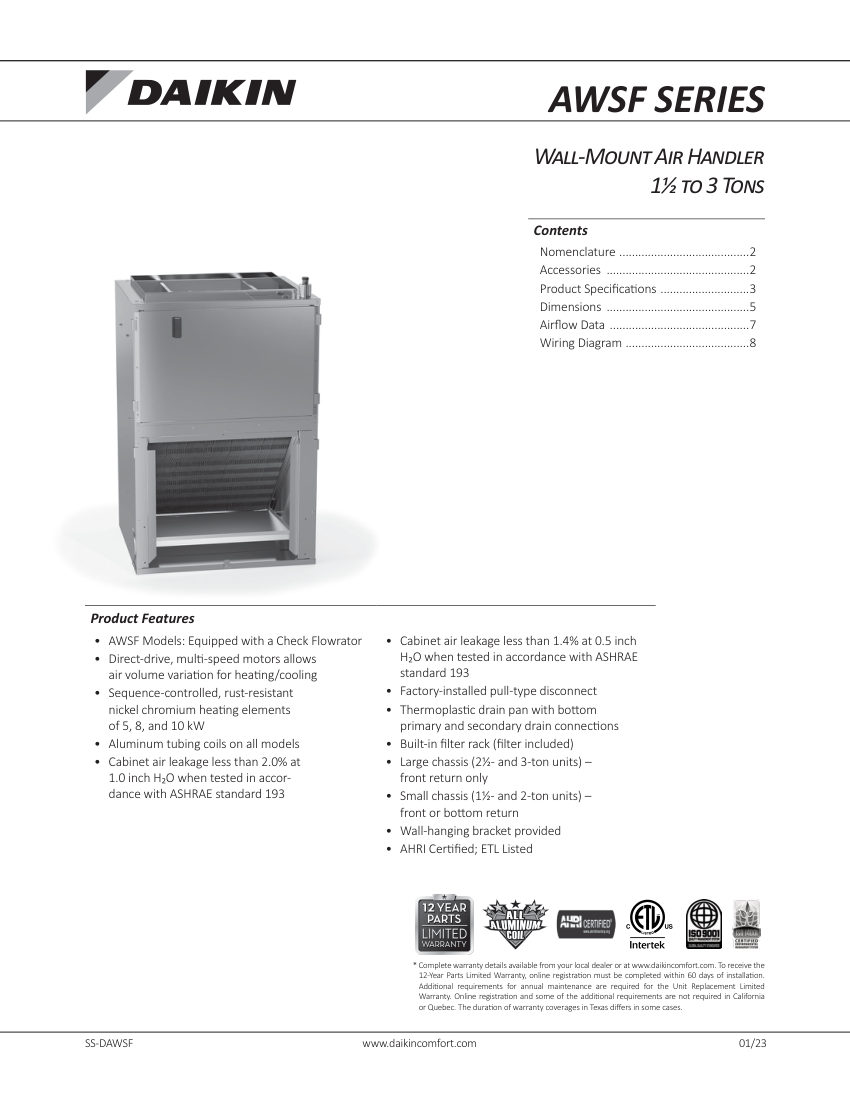

Daikin AWSF18SU1605 AA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
AWSF18SU1605 AA
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAWSF18SU1605 AA
DescriptionDaikin Wall-Mount Air Handler (Air Handler). Model SS-DAWSF. Capacity Range: 1.5 to 3.0 Tons
Motor TypeMS-ECM Direct-drive, multi-speed
Heating Elements5, 8, or 10 kW nickel chromium
Expansion DeviceCheck Flowrator. material: Aluminum tubing coils, Thermoplastic drain pan
FinishUnpainted
MountingWall-Mount
DimensionsCabinet Width: 20.2" (S) or 24.0" (L)
ComplianceAHRI Certified, ETL Listed, ASHRAE 193
Voltage208/230 V, 1 Phase, 60 Hz.

Also cataloged as: AWSF18SU1608 AA, AWSF24SU1605 AA, AWSF24SU1608 AA, AWSF24SU1610 AA, AWSF30LU1605 AA, AWSF30LU1608 AA, AWSF30LU1610 AA, AWSF36LU1605 AA, AWSF36LU1608 AA, AWSF36LU1610 AA, AWS-18, AWSF-18, AWSF-24, AWSF-30, AWSF-36, AWSF-1, AWSF-4, AWSF-03, AWSF-05, AWSF-08, AWSF-10
