DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinAWUF180316

Daikin Wall-Mount Air Handler (Air Handler). Model AWUF180316. 1.5 Ton capacity (18,000 Btu/hr); 1/5 HP Blower Motor; Multi-speed PSC motor; Cabinet air leakage < 2.0% at 1.0 inch H2O. material: Aluminum tubing coils, Thermoplastic drain pan

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAWUF180316.pdfData sheet

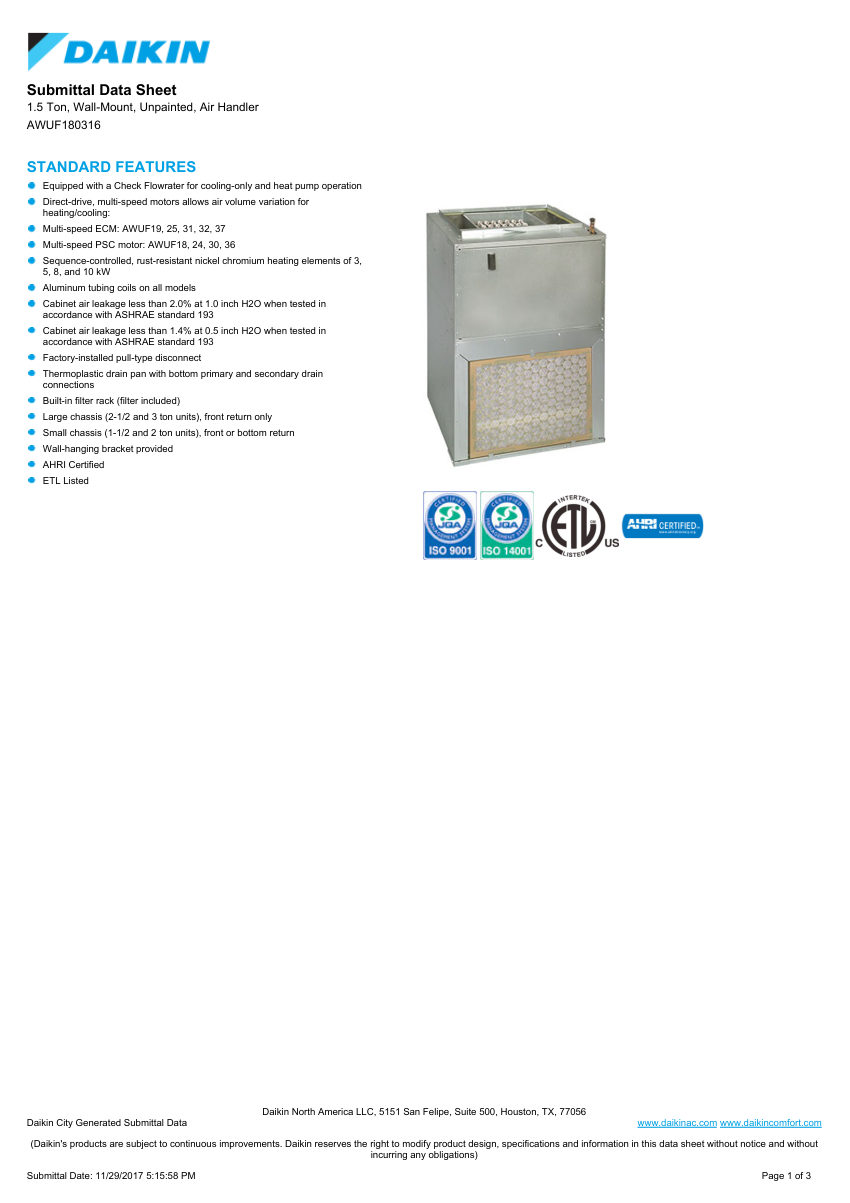

Daikin AWUF180316 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
AWUF180316
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAWUF180316
DescriptionDaikin Wall-Mount Air Handler (Air Handler). Model AWUF180316. 1.5 Ton capacity (18,000 Btu/hr); 1/5 HP Blower Motor; Multi-speed PSC motor; Cabinet air leakage < 2.0% at 1.0 inch H2O. material: Aluminum tubing coils, Thermoplastic drain pan
Connection sizeSuction 5/8 inch, Liquid 3/8 inch, Condensate 3/4 inch
FinishUnpainted
MountingWall-Mount
Dimensions36 x 20-1/4 x 16-1/4 in
ComplianceAHRI Certified, ETL Listed, ASHRAE 193.
