DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_CAUF1824A6CAUF1824A6

Daikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF1824A6. 2 Ton (24,000 Btu/hr) nominal cooling capacity; Optimized for R-410A refrigerant; 21" depth for easier attic access; Foil-faced insulation to reduce cabinet condensation. material: All-Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCAUF1824A6.pdfData sheet

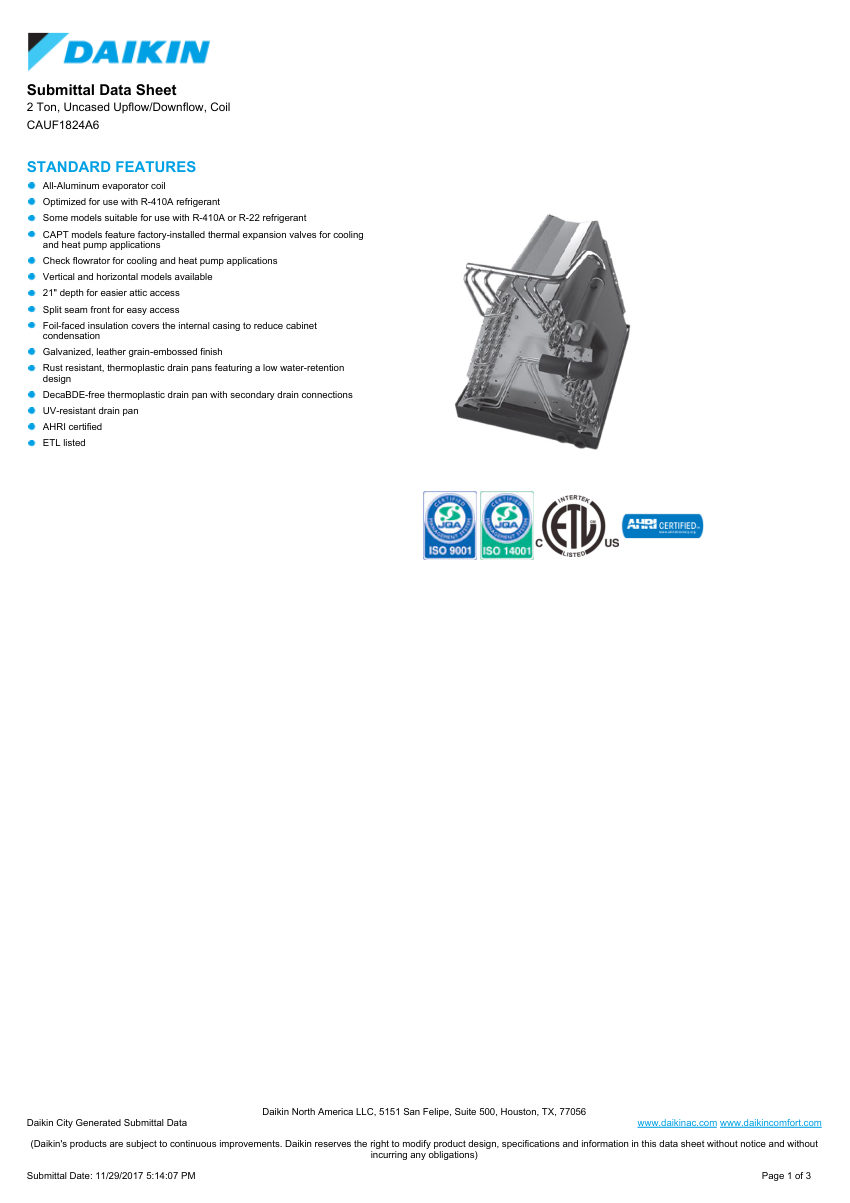

Daikin CAUF1824A6 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
CAUF1824A6
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCAUF1824A6
DescriptionDaikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF1824A6. 2 Ton (24,000 Btu/hr) nominal cooling capacity; Optimized for R-410A refrigerant; 21" depth for easier attic access; Foil-faced insulation to reduce cabinet condensation. material: All-Aluminum
Connection size3/4" Suction, 3/8" Liquid, 3/4" Condensate
FinishGalvanized, leather grain-embossed
MountingUpflow/Downflow
Dimensions16-1/4 x 13 x 20-1/8 in
ComplianceAHRI certified, ETL listed.

Also cataloged as: CAUF1824B6, CAUF1824C6, CAUF3030A6, CAUF3030B6, CAUF3030C6, CAUF3030D6, CAUF3131B6, CAUF3137B6, CAUF3131C6, CAUF3636A6, CAUF3636B6, CAUF3636C6, CAUF3636D6, CAUF3642C6, CAUF3642D6, CAUF3743C6, CAUF3743D6, CAUF4860C6, CAUF4860D6, CAUF4961C6, CAUF4961D6, CAUF-1824, CAUF-3030, CAUF-3131, CAUF-3137, CAUF-3636, CAUF-3642, CAUF-3743, CAUF-4860, CAUF-4961, CAUF-6, CAUF-1824A, CAUF-1824B, CAUF-1824C, CAUF-3030A, CAUF-3030B, CAUF-3030C, CAUF-3030D, CAUF-3131B, CAUF-3137B, CAUF-3131C, CAUF-3636A, CAUF-3636B, CAUF-3636C, CAUF-3636D, CAUF-3642C, CAUF-3642D, CAUF-3743C, CAUF-3743D, CAUF-4860C, CAUF-4860D, CAUF-4961C, CAUF-4961D
