DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_CAUF1824B6CAUF1824B6

Daikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF1824B6. 2 Ton capacity (24,000 Btu/hr); Optimized for R-410A refrigerant; 21" depth for easier attic access; Rust resistant, thermoplastic drain pans. material: All-Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCAUF1824B6.pdfData sheet

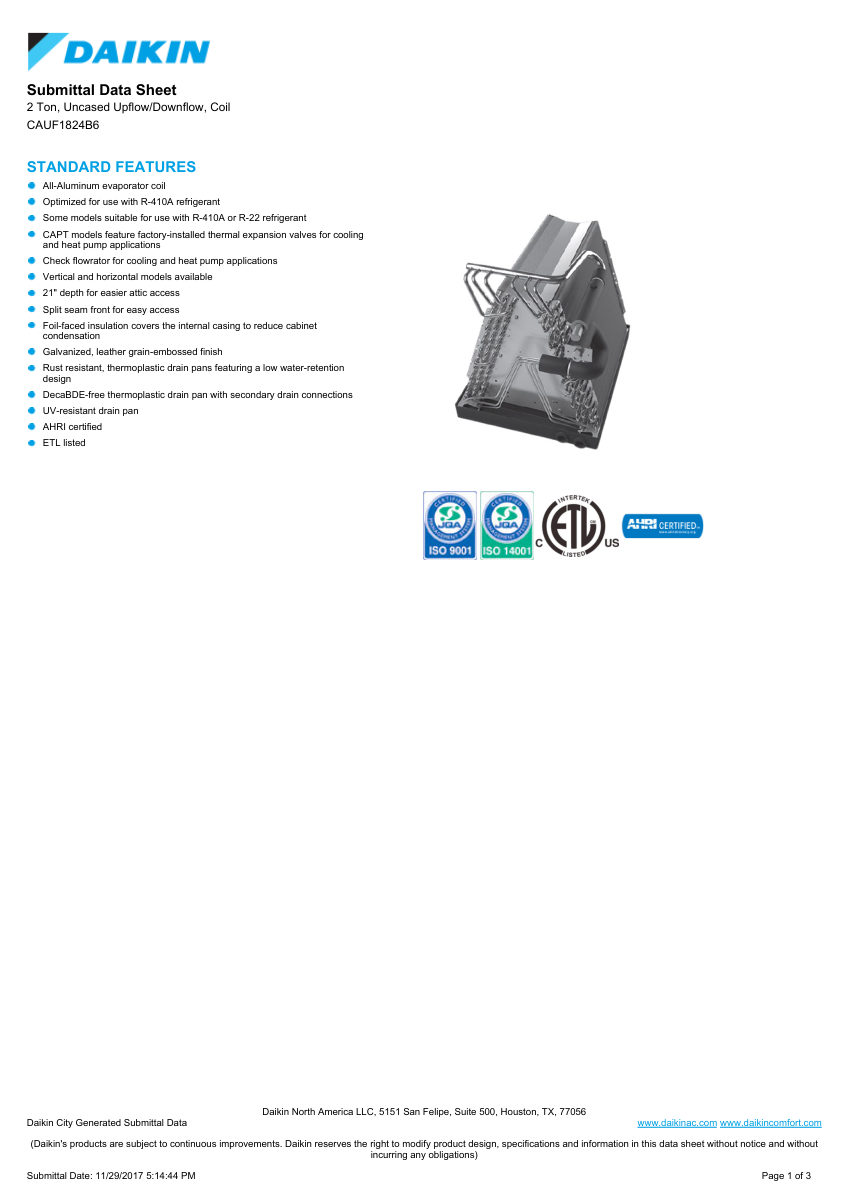

Daikin CAUF1824B6 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
CAUF1824B6
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCAUF1824B6
DescriptionDaikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF1824B6. 2 Ton capacity (24,000 Btu/hr); Optimized for R-410A refrigerant; 21" depth for easier attic access; Rust resistant, thermoplastic drain pans. material: All-Aluminum
Connection size3/4" Suction, 3/8" Liquid, 3/4" Condensate
FinishGalvanized, leather grain-embossed
MountingUpflow/Downflow
Dimensions16-1/8 x 16-1/2 x 20-1/8 in
ComplianceAHRI certified, ETL listed.

Also cataloged as: CAUF1824A6, CAUF3030A6, CAUF4961D6
