DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_CAUF3636A6CAUF3636A6

Daikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF3636A6. 3 Ton capacity (36,000 Btu/hr); Optimized for R-410A refrigerant; 21 inch depth for easier attic access; Rust resistant thermoplastic drain pan. material: All-Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCAUF3636A6.pdfData sheet

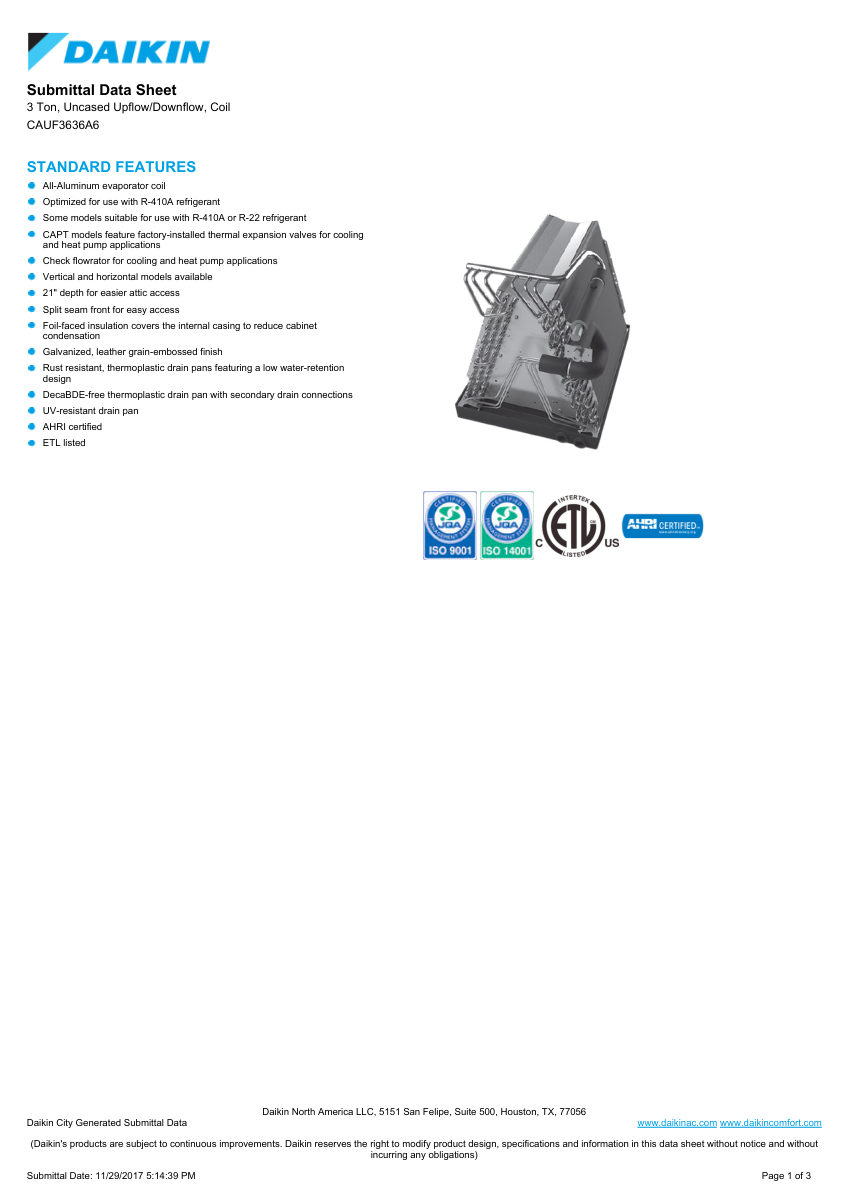

Daikin CAUF3636A6 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
CAUF3636A6
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCAUF3636A6
DescriptionDaikin Uncased Upflow/Downflow Coil (Evaporator Coil). Model CAUF3636A6. 3 Ton capacity (36,000 Btu/hr); Optimized for R-410A refrigerant; 21 inch depth for easier attic access; Rust resistant thermoplastic drain pan. material: All-Aluminum
Connection size3/4 in suction, 3/8 in liquid, 3/4 in condensate
FinishGalvanized, leather grain-embossed
MountingUpflow/Downflow
Dimensions19-1/2 x 13 x 20-1/8 in
ComplianceAHRI certified, ETL listed.

Also cataloged as: CAUF1824A6, CAUF1824B6, CAUF1824C6, CAUF3030A6, CAUF3030B6, CAUF3030C6, CAUF3030D6, CAUF3131B6, CAUF3137B6, CAUF3131C6, CAUF3636B6
