DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_CSCF3642N6CSCF3642N6

Daikin Evaporator Coil (Air Handling Unit). Model CSCF3642N6. 3.5 Ton capacity; 42,000 Btu/hr nominal cooling; Optimized for R-410A refrigerant; 21" depth for easier attic access. material: All-Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCSCF3642N6.pdfData sheet

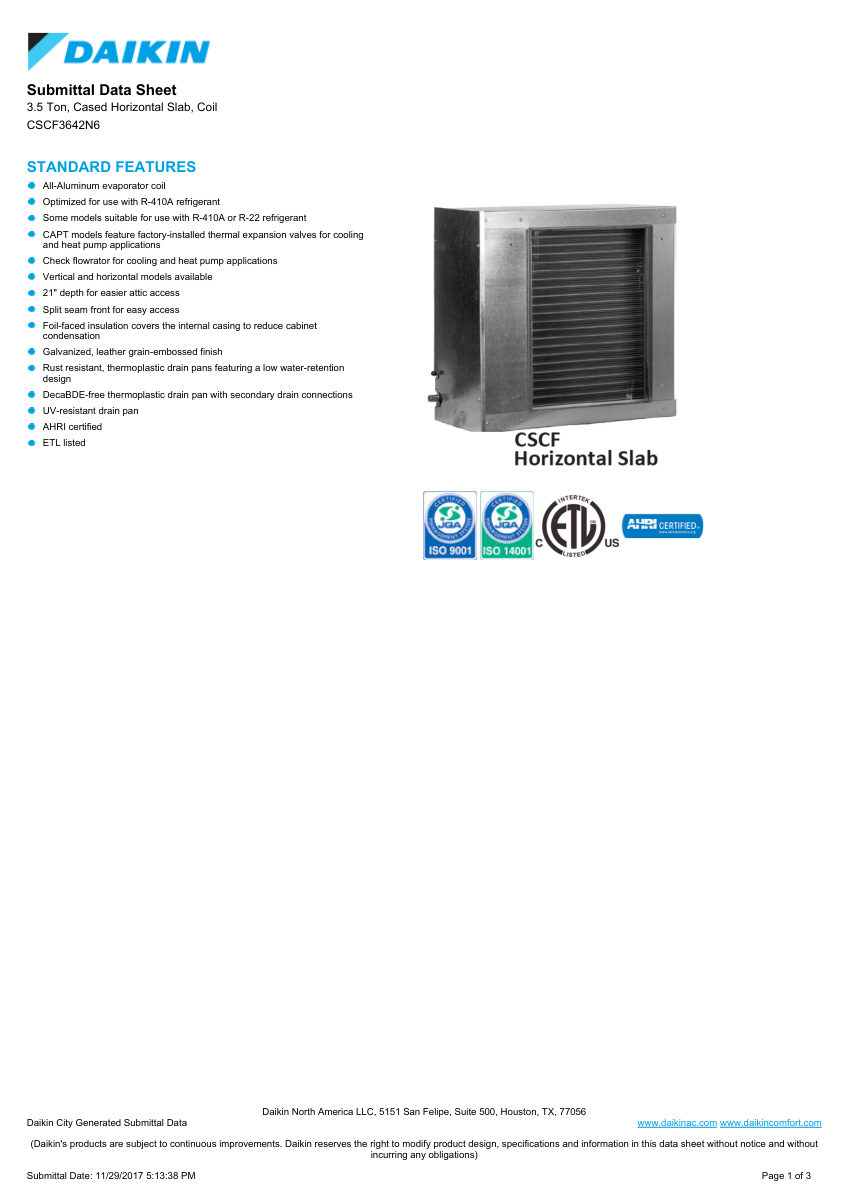

Daikin CSCF3642N6 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
CSCF3642N6
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCSCF3642N6
DescriptionDaikin Evaporator Coil (Air Handling Unit). Model CSCF3642N6. 3.5 Ton capacity; 42,000 Btu/hr nominal cooling; Optimized for R-410A refrigerant; 21" depth for easier attic access. material: All-Aluminum
Connection size7/8" Suction, 3/8" Liquid, 3/4" Condensate
FinishGalvanized, leather grain-embossed
MountingHorizontal Slab
Dimensions25 x 39-1/2 x 12 in
ComplianceAHRI certified, ETL listed.

Also cataloged as: CSCF1824N6, CSCF3036N6, CSCF4860N6
