DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinDaikin DF Mech Guide

Daikin Packaged Rooftop Unit (Rooftop Unit). Model DF Series. Capacity range 3-25 tons; Refrigerant R-410A; Convertible airflow orientation for 3-12.5 ton models; 5-year parts and compressor warranty. material: Galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDaikin-DF-Mech-Guide.pdfData sheet

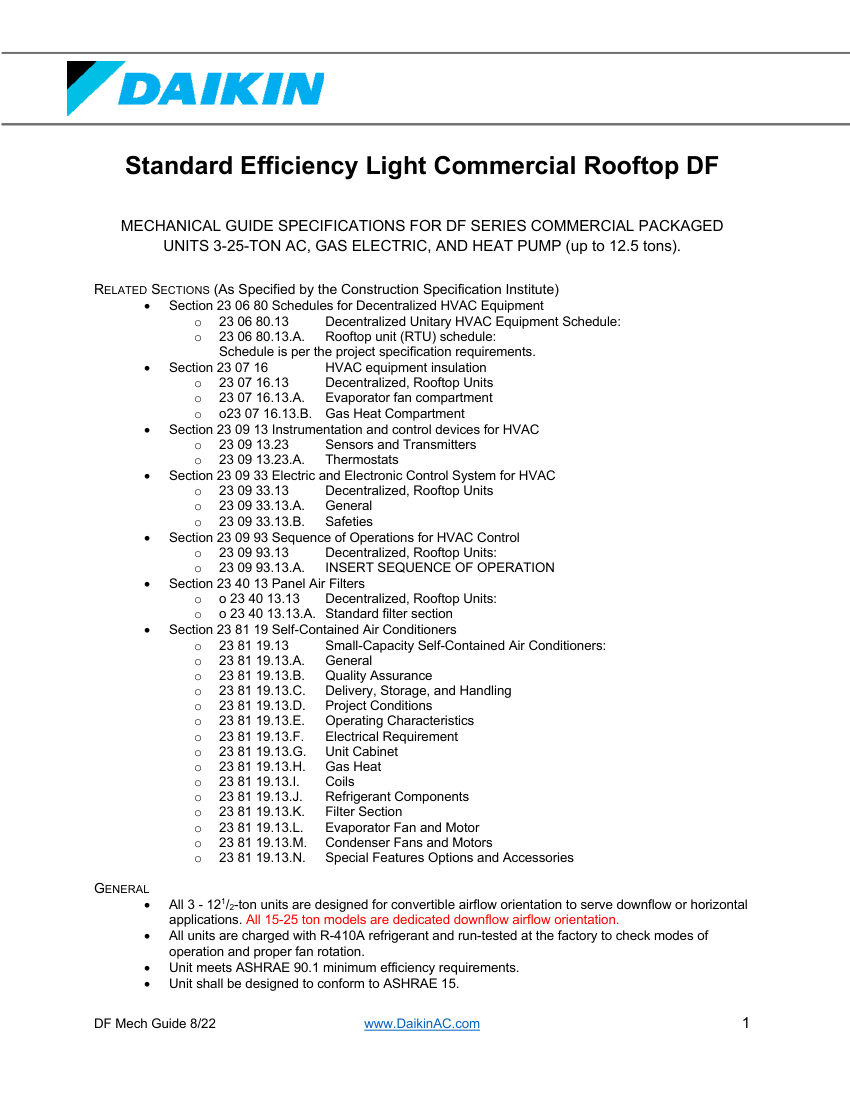

Daikin Daikin DF Mech Guide cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
Daikin DF Mech Guide
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDaikin DF Mech Guide
DescriptionDaikin Packaged Rooftop Unit (Rooftop Unit). Model DF Series. Capacity range 3-25 tons; Refrigerant R-410A; Convertible airflow orientation for 3-12.5 ton models; 5-year parts and compressor warranty. material: Galvanized steel
Connection size3/4"-14 NPT (3-12.5 ton), 1"-14 NPT (15-25 ton)
End connectionNPT
FinishPowder-paint
MountingRooftop
ComplianceASHRAE 90.1, ASHRAE 15, AHRI 210/240, AHRI 340/360, UL 60335-2-40, UL 1995, ANSI Z21.47, NFPA 90A, ASTM B117, ISO 9001:2015, NRCA, ASTM D4169, ASHRAE 62.1.
