DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinDaikin DS-DH Mechanical Guide

Daikin Packaged Rooftop Unit (Rooftop Unit). Model DS/DH Series. Capacity range 3 to 25 tons; Refrigerant R-32; 5-year parts and compressor warranty; 20-year gas heat exchanger warranty. material: Galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDaikin-DS-DH-Mechanical-Guide.pdfData sheet

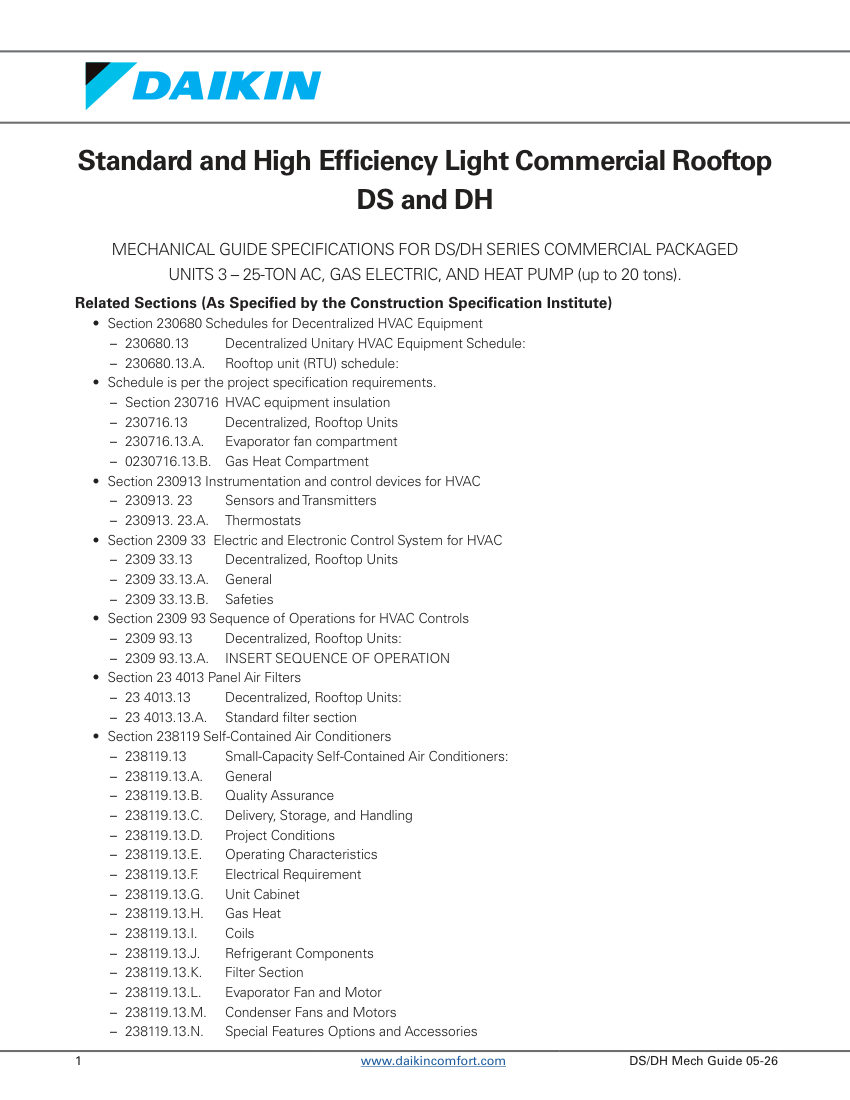

Daikin Daikin DS-DH Mechanical Guide cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
Daikin DS-DH Mechanical Guide
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDaikin DS-DH Mechanical Guide
DescriptionDaikin Packaged Rooftop Unit (Rooftop Unit). Model DS/DH Series. Capacity range 3 to 25 tons; Refrigerant R-32; 5-year parts and compressor warranty; 20-year gas heat exchanger warranty. material: Galvanized steel
Connection size3/4"-14 NPT (3-12.5 ton), 1"-14 NPT (15-25 ton)
End connectionNPT
FinishPowder-paint
MountingRooftop
ComplianceASHRAE 90.1, ASHRAE 15, AHRI 210/240, UL 60335-2-40, ANSI Z21.47, NFPA 90A, ASTM B117, ISO 9001:2015.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
