DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinDaikin dx_dz-mechanical-guide

Daikin Condenser Unit (Light Commercial Condenser Units). Model DX/DZ. 7.5 and 10 ton capacity; R-410A refrigerant; Hermetically sealed scroll compressors; Copper tube and aluminum fin condenser coils. material: Galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDaikin-dx_dz-mechanical-guide.pdfData sheet

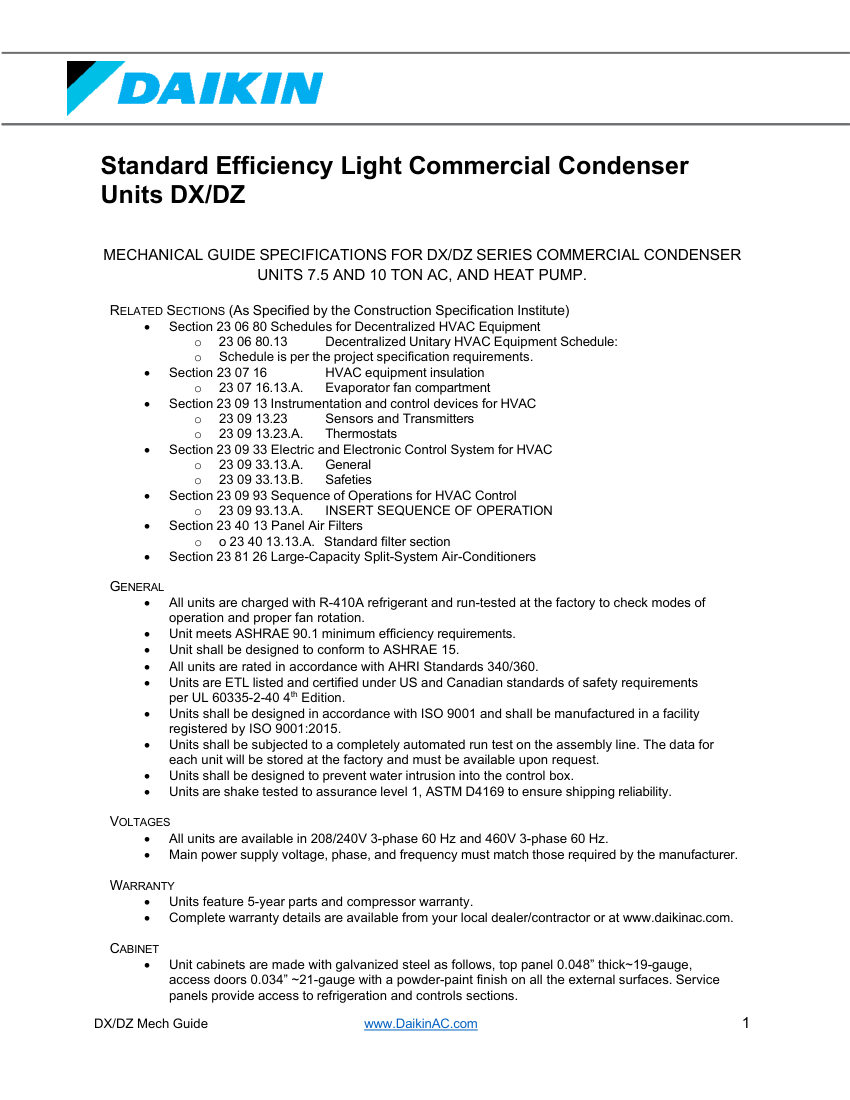

Daikin Daikin dx_dz-mechanical-guide cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
Daikin dx_dz-mechanical-guide
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDaikin dx_dz-mechanical-guide
DescriptionDaikin Condenser Unit (Light Commercial Condenser Units). Model DX/DZ. 7.5 and 10 ton capacity; R-410A refrigerant; Hermetically sealed scroll compressors; Copper tube and aluminum fin condenser coils. material: Galvanized steel
Pressure RatingLeak-tested to 575 psig, pressure-tested to 450 psig
FinishPowder-paint
MountingFloor standing (implied by cabinet design)
ComplianceASHRAE 90.1, ASHRAE 15, AHRI 340/360, UL 60335-2-40, ISO 9001:2015
Voltage208/240V 3-phase 60 Hz, 460V 3-phase 60 Hz.
