DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinDAQ09033DAQ09033

Daikin Air Handler (Light Commercial Air Handler). Model DAQ09033. 7.5 Ton Cooling Capacity (90,000 Btu/hr); R-32 Refrigerant with leak mitigation system; Two 5-speed direct-drive blower motors; 1 HP Blower Motor Rating. material: Galvanized-steel cabinet, Copper tube/aluminum fin coils

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDAQ09033.pdfData sheet

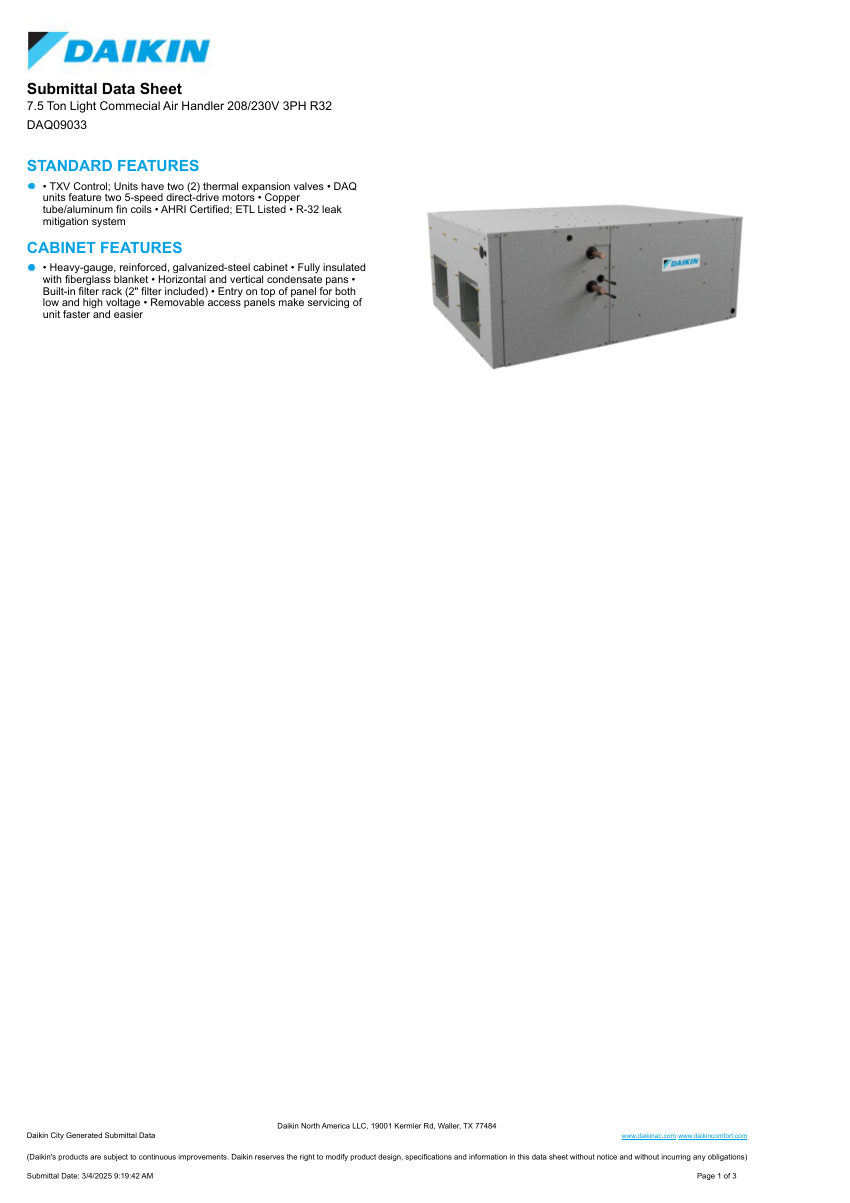

Daikin DAQ09033 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
DAQ09033
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDAQ09033
DescriptionDaikin Air Handler (Light Commercial Air Handler). Model DAQ09033. 7.5 Ton Cooling Capacity (90,000 Btu/hr); R-32 Refrigerant with leak mitigation system; Two 5-speed direct-drive blower motors; 1 HP Blower Motor Rating. material: Galvanized-steel cabinet, Copper tube/aluminum fin coils
Connection sizeSuction 1-1/8 in, Liquid 5/8 in, Condensate 3/4 in
Dimensions24.1875 x 60.46875 x 48.09375 in
ComplianceAHRI Certified, ETL Listed
Voltage208/230V 3PH 60Hz.
