DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSS-DAXDAX09043A

Daikin Electric Air Handler (Commercial Air Handlers). Model SS-DAX. Cooling Capacity: 90,000 or 120,000 BTU/h

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDAX09043A.pdfData sheet

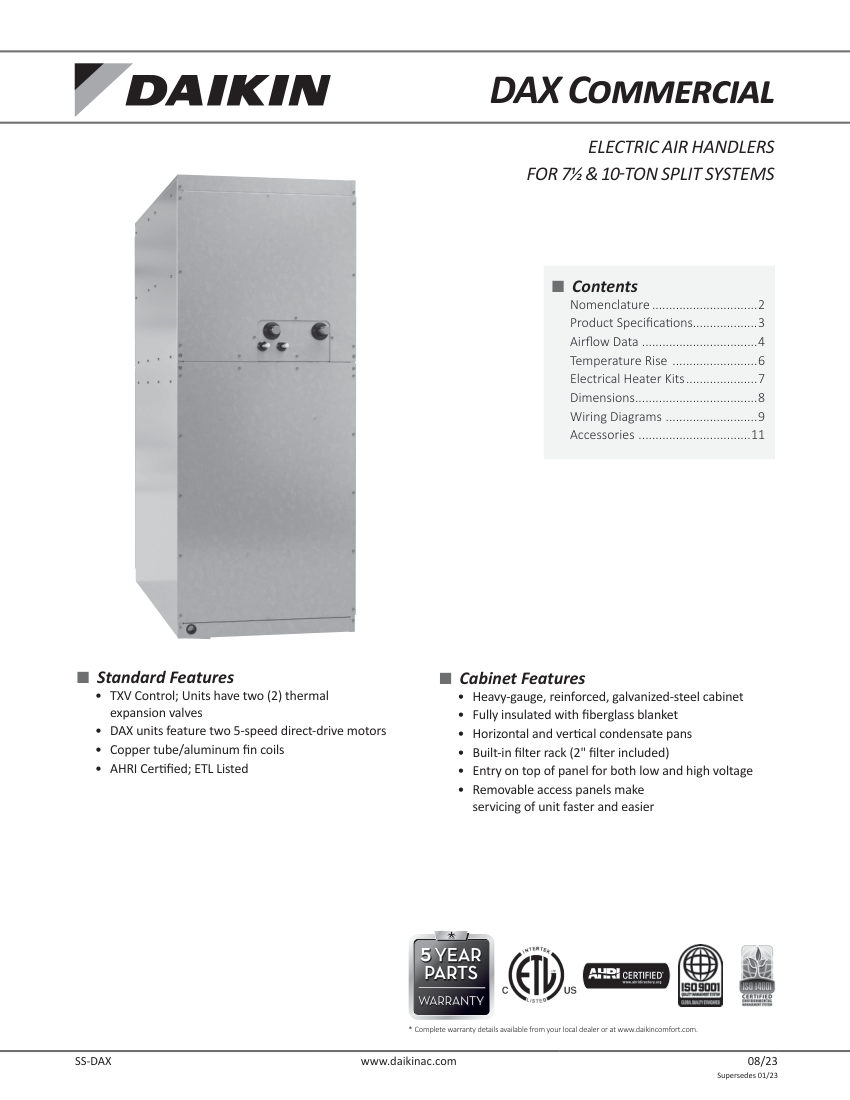

Daikin DAX09043A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
DAX09043A
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDAX09043A
DescriptionDaikin Electric Air Handler (Commercial Air Handlers). Model SS-DAX. Cooling Capacity: 90,000 or 120,000 BTU/h
Heating Capacity15, 20, or 30 kW
RefrigerantR-410A
Blower Motor1 HP Direct Drive, 5-Speed. material: Galvanized-steel cabinet, fiberglass insulation
Connection sizeLiquid: 3/8" (2), Suction: 1-1/8" (2), Condensate: 3/4" FPT
Flow Rate3,000 CFM (090), 4,000 CFM (120)
MountingMulti-Position
ComplianceAHRI Certified, ETL Listed
Voltage208/240-60-3, 460-60-3.

Also cataloged as: DAX09044A, DAX12043A, DAX12044A, DAX-090, DAX-120, DAX-4, DAX-3
