DaikinDC3 - DH4 mechanical guideDC3

Daikin Condenser and Heat Pump Unit (Light Commercial Split System). Model DC3SEA/DH4SEA. 3-5 Ton capacity; R-32 refrigerant; Hermetic scroll compressors; 5-year parts and compressor warranty. material: Galvanized steel cabinet, copper tube and aluminum fin coils

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDC3.pdfData sheet

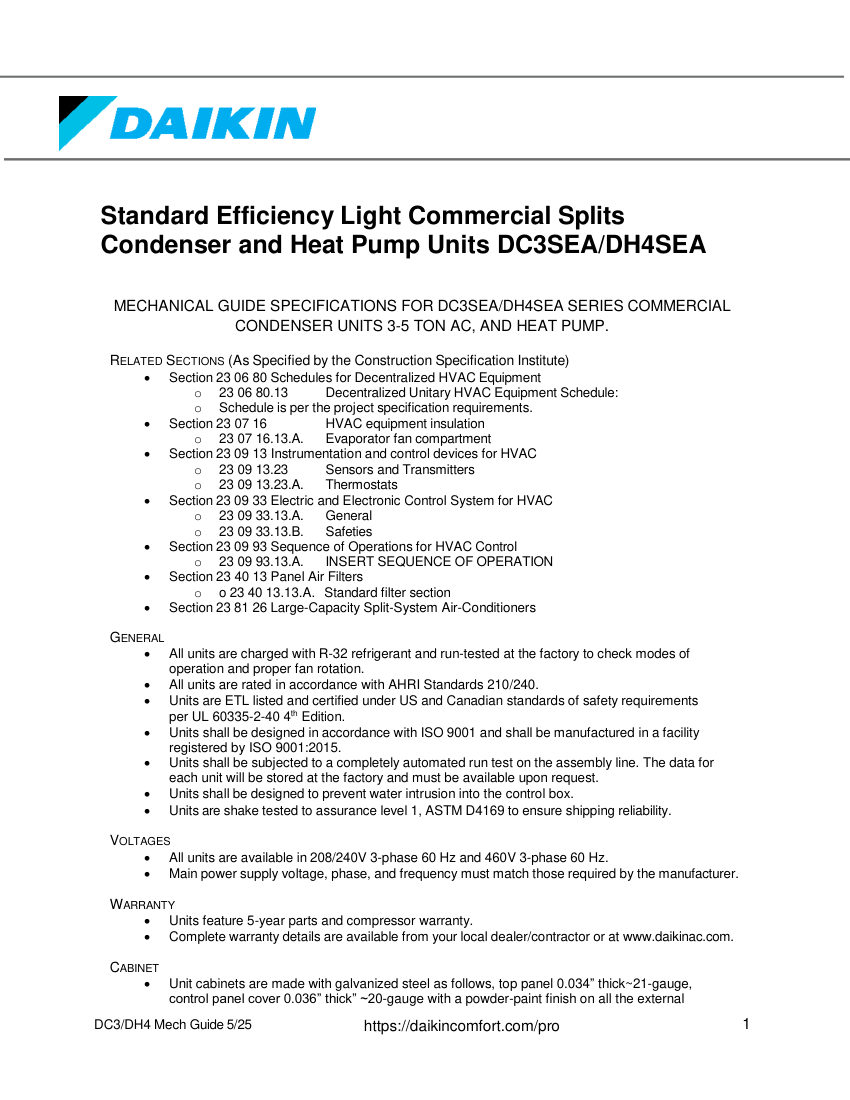

Daikin DC3 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
DC3
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDC3
DescriptionDaikin Condenser and Heat Pump Unit (Light Commercial Split System). Model DC3SEA/DH4SEA. 3-5 Ton capacity; R-32 refrigerant; Hermetic scroll compressors; 5-year parts and compressor warranty. material: Galvanized steel cabinet, copper tube and aluminum fin coils
Pressure Rating450 psig leak test
FinishPowder-paint
MountingRubber isolation grommets
ComplianceAHRI 210/240, UL 60335-2-40, ISO 9001:2015, ASTM D4169, ASTM B117
Voltage208/240V 3-phase 60 Hz, 460V 3-phase 60 Hz.
