DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinDMS502B71

Daikin BACnet Interface (HVAC Controls). Model DMS502B71. Supports 128 groups/256 indoor units (expandable to 256 groups/512 units with DAM411B51); Maximum 20 outdoor units (40 with DAM411B51); BACnet IP communication via 10Base-T/100Base-TX; DIII-Net communication using 18AWG-2 stranded, non-shielded wire. dimensions: 10.81 x 10.34 x 2.69 inch (274.57 x 262.13 x 68.33 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDMS502B71.pdfData sheet

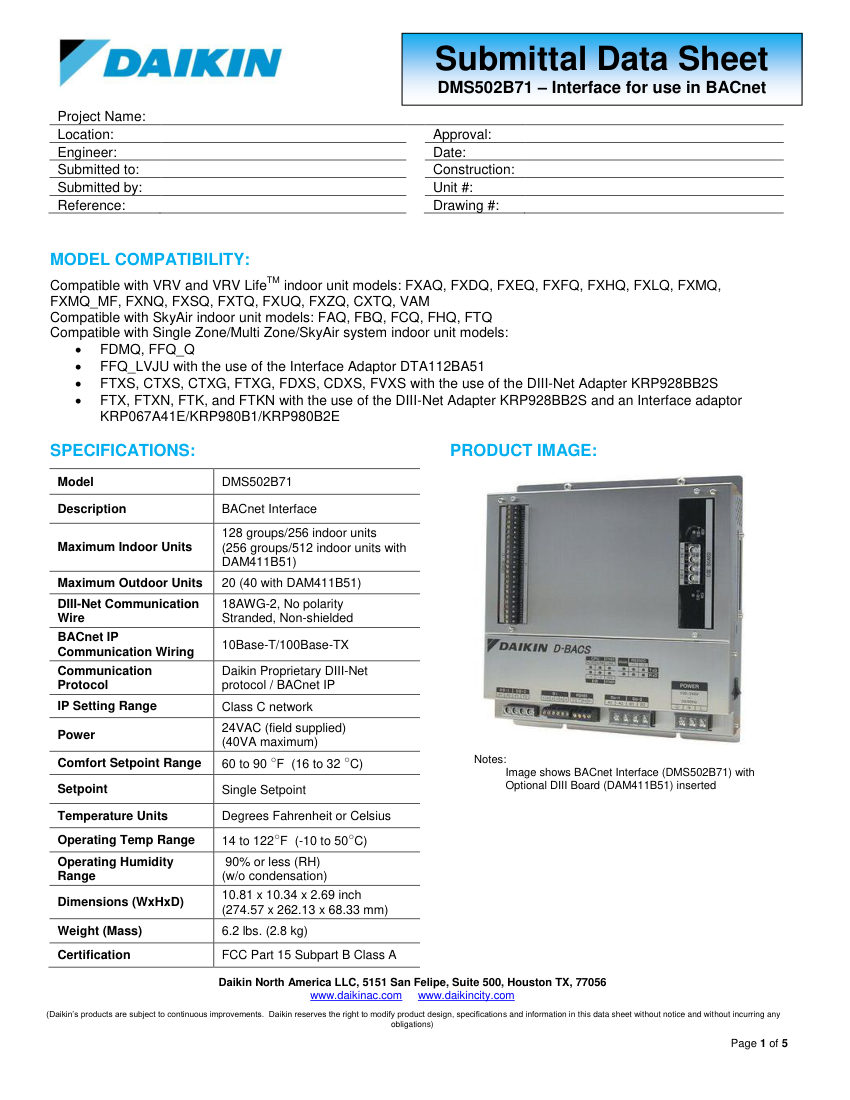

Daikin DMS502B71 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
DMS502B71
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDMS502B71
DescriptionDaikin BACnet Interface (HVAC Controls). Model DMS502B71. Supports 128 groups/256 indoor units (expandable to 256 groups/512 units with DAM411B51); Maximum 20 outdoor units (40 with DAM411B51); BACnet IP communication via 10Base-T/100Base-TX; DIII-Net communication using 18AWG-2 stranded, non-shielded wire. dimensions: 10.81 x 10.34 x 2.69 inch (274.57 x 262.13 x 68.33 mm)
ComplianceFCC Part 15 Subpart B Class A, BACnet (ANSI / ASHRAE-135)
Voltage24VAC.
