DaikinSDS-DC_FXDQ07MVJUFXDQ07MVJU

Daikin Slim Duct Built-in Concealed Ceiling Unit (Air Conditioning). Model FXDQ07MVJU. 0.5-Ton capacity; Rated Cooling Capacity 7,500 Btu/hr; Rated Heating Capacity 8,500 Btu/hr; Sound Pressure as low as 29 dBA. connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 1-1/32 inch

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXDQ07MVJU.pdfData sheet

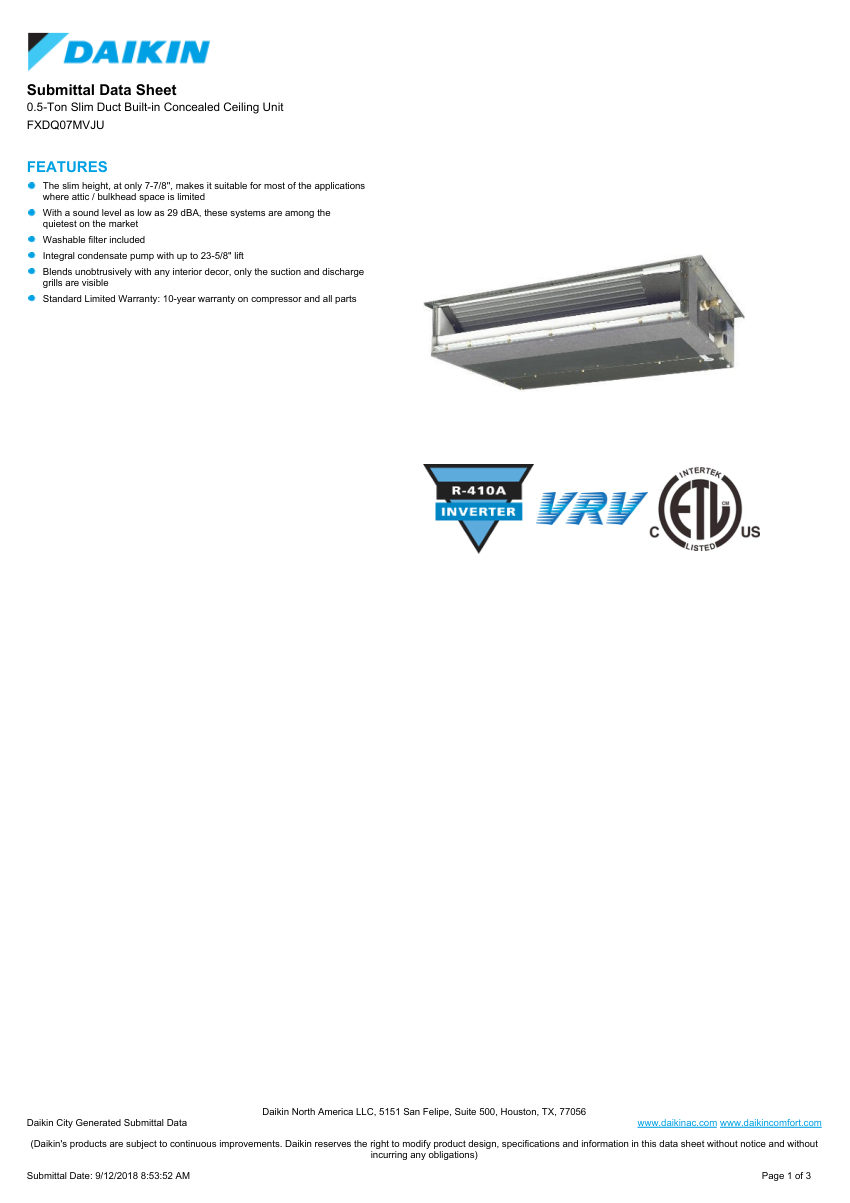

Daikin FXDQ07MVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXDQ07MVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXDQ07MVJU
DescriptionDaikin Slim Duct Built-in Concealed Ceiling Unit (Air Conditioning). Model FXDQ07MVJU. 0.5-Ton capacity; Rated Cooling Capacity 7,500 Btu/hr; Rated Heating Capacity 8,500 Btu/hr; Sound Pressure as low as 29 dBA. connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 1-1/32 inch
Pressure RatingExt. Static Pressure 0.12 inWg
Flow Rate280/226 CFM
MountingConcealed Ceiling
Dimensions7-7/8 x 27-9/16 x 24-7/16 in
Voltage208-230 V / 60 Hz / 1 Ph.
