DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXDQ12MVJUFXDQ12MVJU

Daikin Concealed Ceiling Unit (Air Conditioning). Model FXDQ12MVJU. 1.0-Ton Slim Duct Built-in Concealed Ceiling Unit

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXDQ12MVJU.pdfData sheet

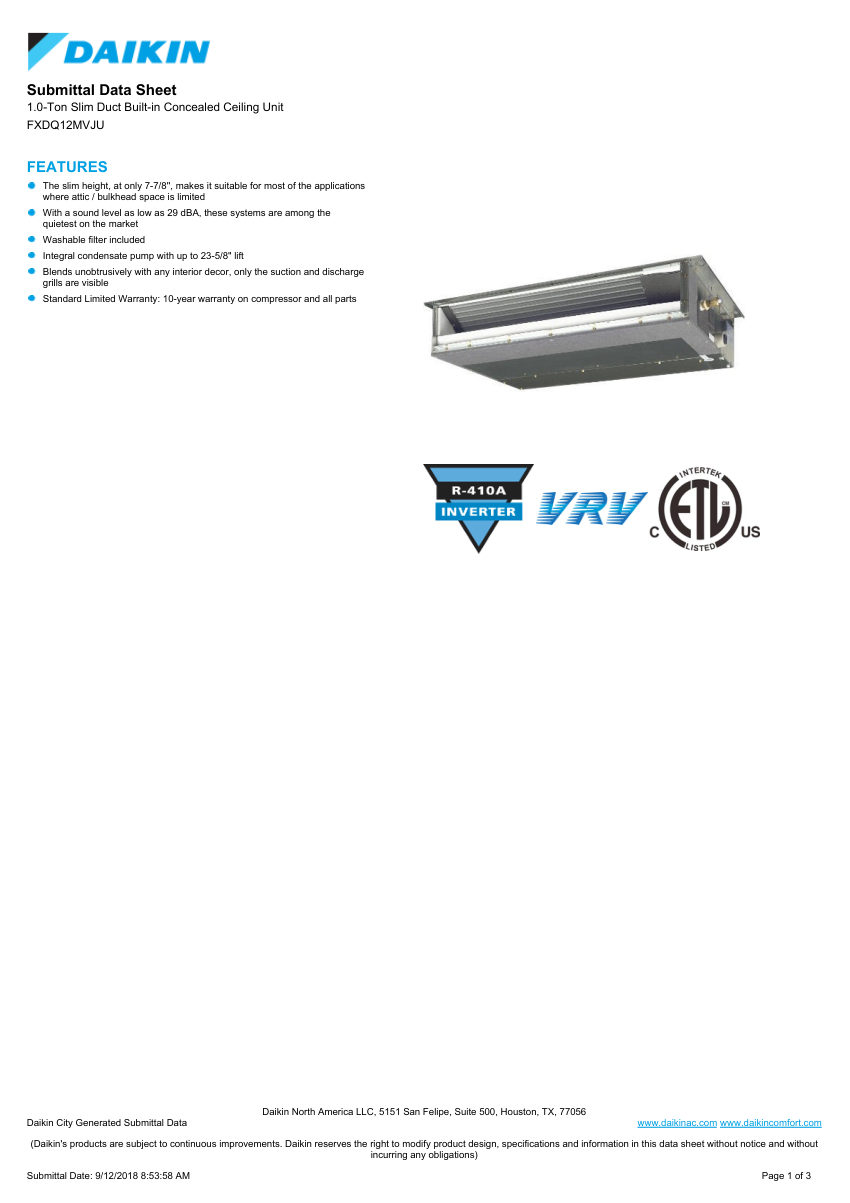

Daikin FXDQ12MVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXDQ12MVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXDQ12MVJU
DescriptionDaikin Concealed Ceiling Unit (Air Conditioning). Model FXDQ12MVJU. 1.0-Ton Slim Duct Built-in Concealed Ceiling Unit
Rated Cooling Capacity12,000 Btu/hr
Rated Heating Capacity13,500 Btu/hr
Sound Pressure33/29 dBA (High/Low). connectionSize: 1/2 inch gas, 1/4 inch liquid, 1-1/32 inch condensate
Pressure Rating0.12 inWg rated/max static pressure
Flow Rate280/226 CFM (High/Low)
MountingBuilt-in Concealed Ceiling
Dimensions7-7/8 x 27-9/16 x 24-7/16 in (HxWxD)
Voltage208-230 V / 60 Hz / 1 Ph.
