DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXDQ18MVJUFXDQ18MVJU

Daikin Concealed Ceiling Unit (HVAC). Model FXDQ18MVJU. 1.5-Ton Slim Duct Built-in Concealed Ceiling Unit

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXDQ18MVJU.pdfData sheet

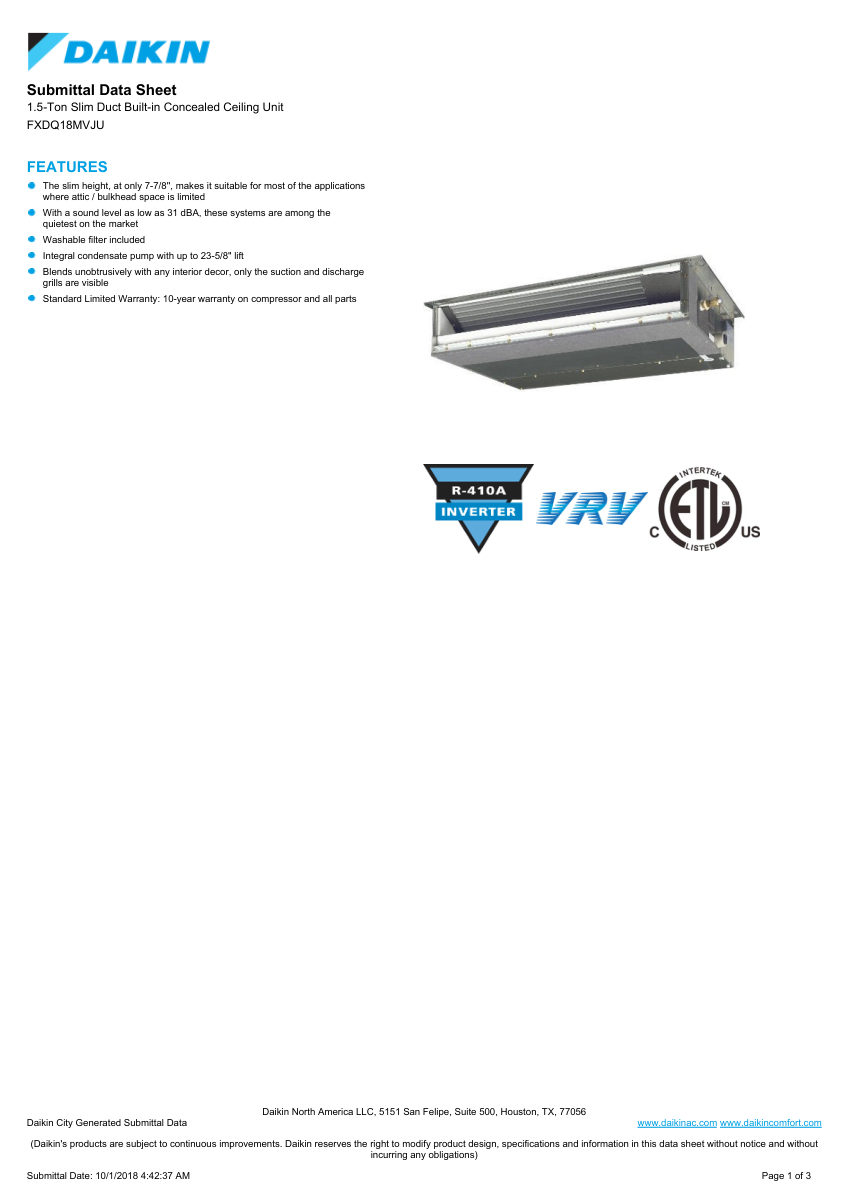

Daikin FXDQ18MVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXDQ18MVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXDQ18MVJU
DescriptionDaikin Concealed Ceiling Unit (HVAC). Model FXDQ18MVJU. 1.5-Ton Slim Duct Built-in Concealed Ceiling Unit
Rated Cooling Capacity18,000 Btu/hr
Rated Heating Capacity20,000 Btu/hr
Sound Pressure Level35/31 dBA (High/Low). connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 1-1/32 inch
Pressure Rating0.17 inWg
Flow Rate440/350 CFM
MountingConcealed Ceiling
Dimensions7-7/8 x 35-7/16 x 24-7/16 in
Voltage208-230V / 60Hz / 1Ph.
