DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXMQ12PBVJUFXMQ12PBVJU

Daikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ12PBVJU. 1.0-Ton capacity; DC fan motor; 12,000 Btu/hr cooling capacity; 13,500 Btu/hr heating capacity. connectionSize: Gas 1/2 in, Liquid 1/4 in, Condensate 1-1/4 in

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXMQ12PBVJU.pdfData sheet

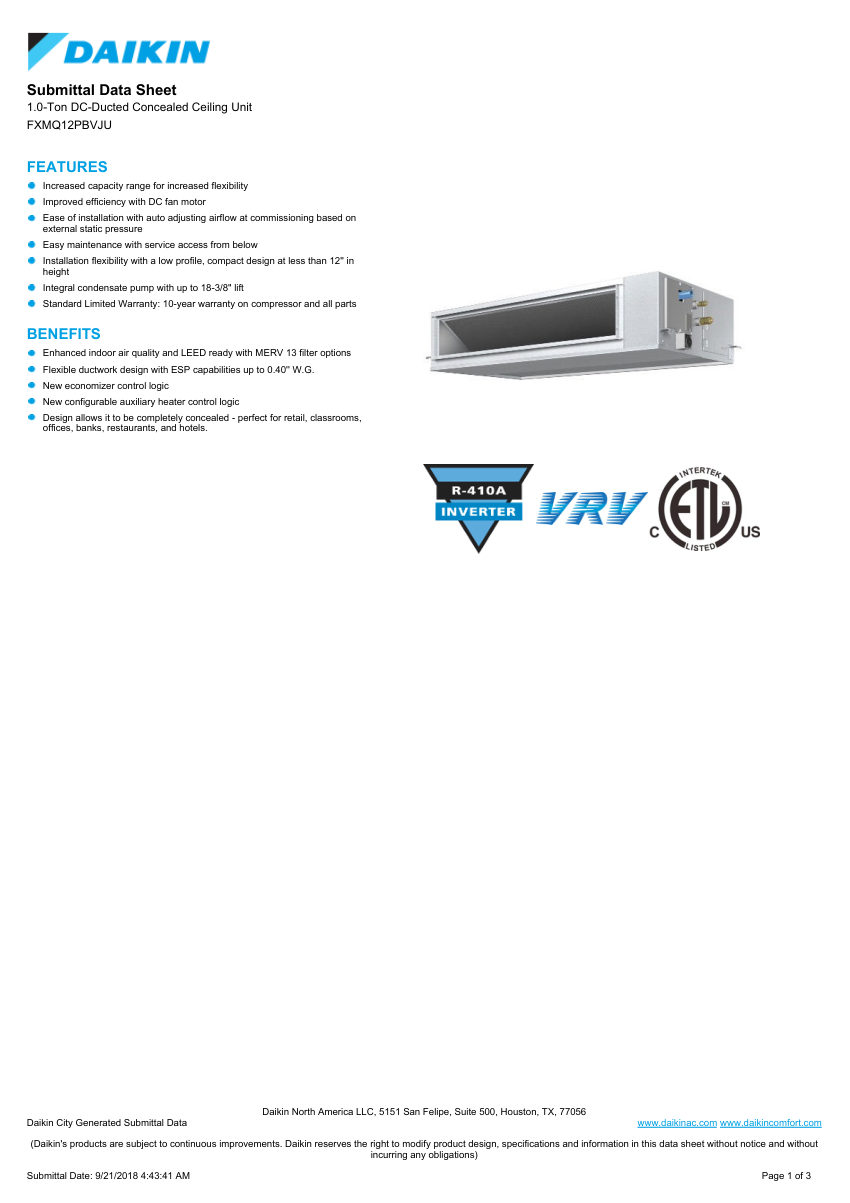

Daikin FXMQ12PBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXMQ12PBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXMQ12PBVJU
DescriptionDaikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ12PBVJU. 1.0-Ton capacity; DC fan motor; 12,000 Btu/hr cooling capacity; 13,500 Btu/hr heating capacity. connectionSize: Gas 1/2 in, Liquid 1/4 in, Condensate 1-1/4 in
Pressure RatingExt. Static Pressure 0.2" / 0.4" inWg
Flow Rate450/410/388 CFM
MountingConcealed Ceiling
Dimensions11-13/16 x 27-9/16 x 27-9/16 in
ComplianceLEED ready.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
