DaikinSDS-DC_FXMQ15PBVJUFXMQ15PBVJU

Daikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ15PBVJU. 1.25-Ton capacity; DC fan motor; 10-year warranty on compressor and parts; Integral condensate pump with 18-3/8" lift. connectionSize: 1/2" gas, 1/4" liquid, 1-1/4" condensate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXMQ15PBVJU.pdfData sheet

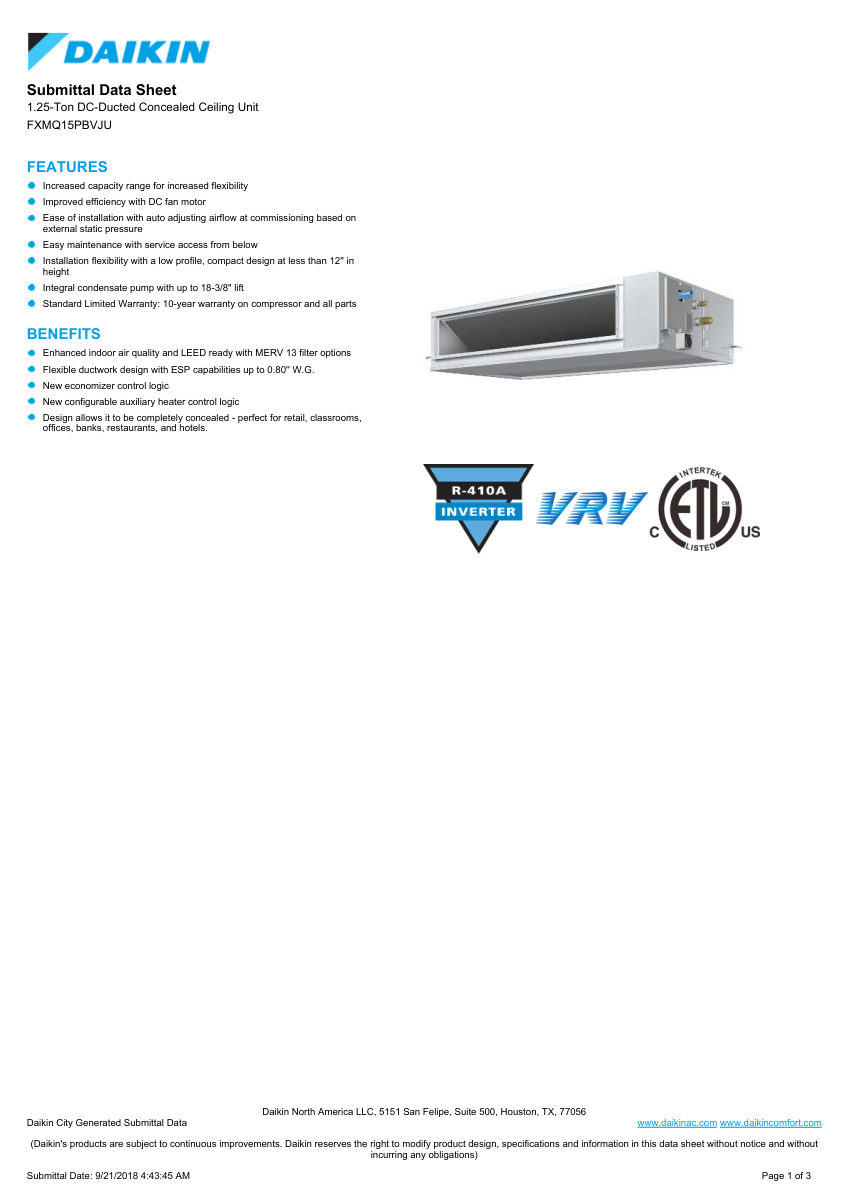

Daikin FXMQ15PBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXMQ15PBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXMQ15PBVJU
DescriptionDaikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ15PBVJU. 1.25-Ton capacity; DC fan motor; 10-year warranty on compressor and parts; Integral condensate pump with 18-3/8" lift. connectionSize: 1/2" gas, 1/4" liquid, 1-1/4" condensate
Pressure Rating0.4" / 0.8" inWg
Flow Rate560/530/500 CFM
MountingConcealed Ceiling
Dimensions11-13/16 x 39-3/8 x 27-9/16 in
ComplianceLEED ready.
