DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXMQ30PBVJUFXMQ30PBVJU

Daikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ30PBVJU. 2.5-Ton capacity; DC fan motor; Integral condensate pump with 18-3/8 in lift; 10-year warranty on compressor and parts. connectionSize: Gas 5/8 in, Liquid 3/8 in, Condensate 1-1/4 in

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXMQ30PBVJU.pdfData sheet

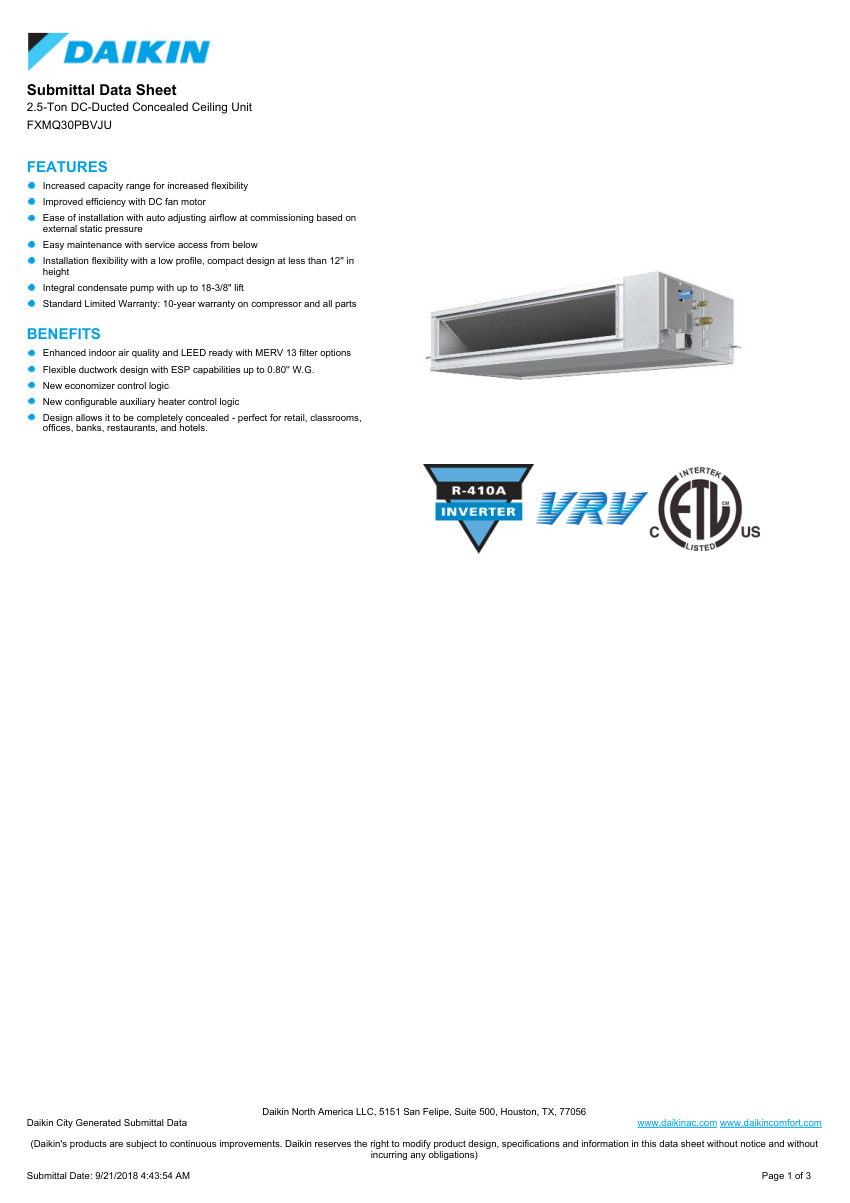

Daikin FXMQ30PBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXMQ30PBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXMQ30PBVJU
DescriptionDaikin Ducted Concealed Ceiling Unit (HVAC). Model FXMQ30PBVJU. 2.5-Ton capacity; DC fan motor; Integral condensate pump with 18-3/8 in lift; 10-year warranty on compressor and parts. connectionSize: Gas 5/8 in, Liquid 3/8 in, Condensate 1-1/4 in
Pressure RatingExt. Static Pressure 0.4 inWg Rated / 0.8 inWg Max
Flow Rate1,094/953/812 CFM (HH/H/L)
MountingConcealed Ceiling
Dimensions11-13/16 x 55-1/8 x 27-9/16 in (HxWxD)
ComplianceLEED ready with MERV 13 filter options.
