DIV 23 · HVACHVACCUT SHEET INDEXED

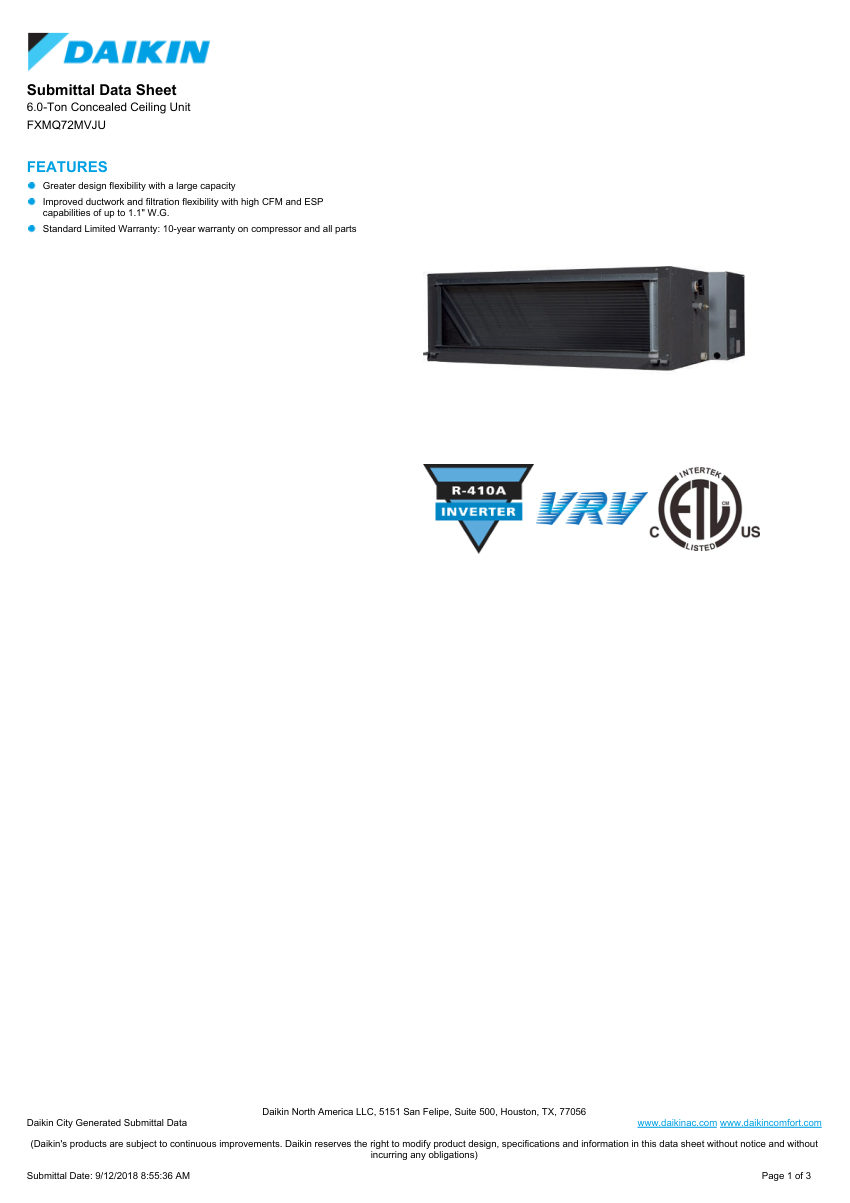

DaikinSDS-DC_FXMQ72MVJU 092719FXMQ72MVJU
Daikin Concealed Ceiling Unit (HVAC). Model FXMQ72MVJU. 6.0-Ton Capacity
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Daikin
- Catalog no.
- FXMQ72MVJU
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | FXMQ72MVJU |
|---|---|
| Description | Daikin Concealed Ceiling Unit (HVAC). Model FXMQ72MVJU. 6.0-Ton Capacity |
| Cooling Capacity | 72,000 Btu/hr |
| Heating Capacity | 81,000 Btu/hr |
| Net Weight | 302 lb. connectionSize: Gas 3/4 in, Liquid 3/8 in, Condensate 1 in |
| Pressure Rating | Max ESP 0.95 inWg |
| Flow Rate | 2,047 / 1,764 CFM |
| Mounting | Concealed Ceiling |
| Dimensions | 18-1/8 x 54-3/8 x 43-5/16 in |
| Voltage | 208-230 V / 60 Hz / 1 Ph. |
Also cataloged as: FXMQ96MVJU
