DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXZQ05TAVJUFXZQ05TAVJU

Daikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ05TAVJU. Rated Cooling Capacity: 5,800 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXZQ05TAVJU.pdfData sheet

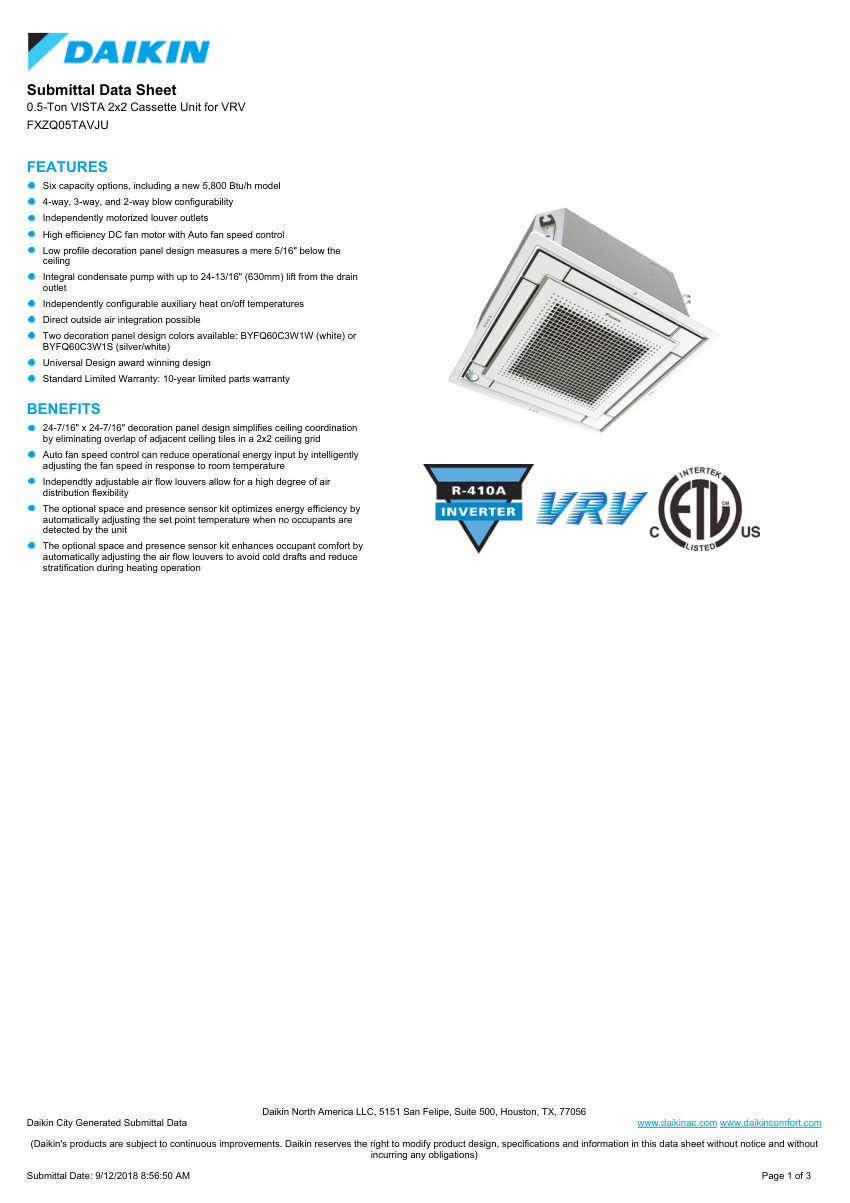

Daikin FXZQ05TAVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXZQ05TAVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXZQ05TAVJU
DescriptionDaikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ05TAVJU. Rated Cooling Capacity: 5,800 Btu/hr
Rated Heating Capacity6,500 Btu/hr
Net Weight34.2 lb
Sound Pressure Level32/30/26 dBA (H/M/L). connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 25/32 inch
Flow Rate300/247/229 CFM (H/M/L)
MountingCeiling
Dimensions10-1/4 x 22-5/8 x 22-5/8 in
ComplianceUniversal Design award winning design
Voltage208/230 V / 60 Hz / 1 Ph.

Also cataloged as: FXZQ07TAVJU, FXZQ09TAVJU, FXZQ12TAVJU, FXZQ15TAVJU, FXZQ18TAVJU
