DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXZQ09TAVJUFXZQ09TAVJU

Daikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ09TAVJU. Rated Cooling Capacity: 9,500 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXZQ09TAVJU.pdfData sheet

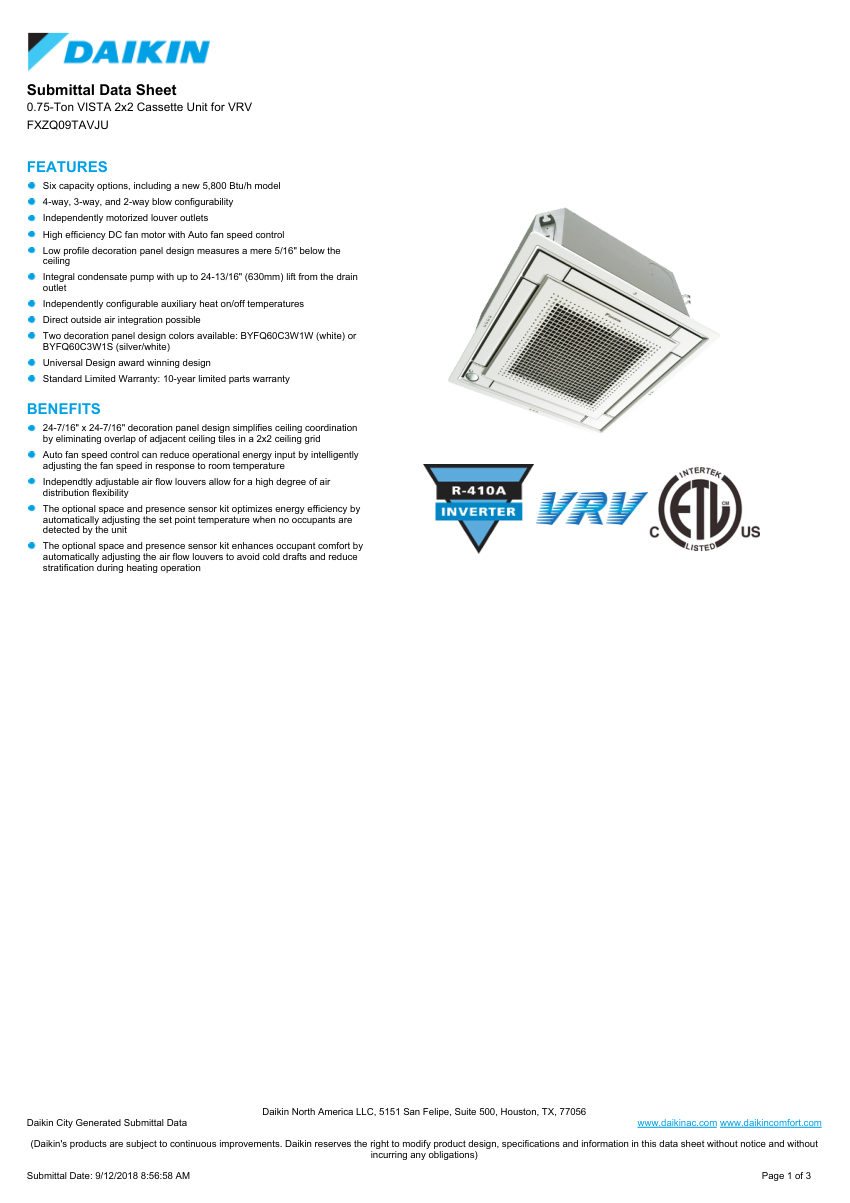

Daikin FXZQ09TAVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXZQ09TAVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXZQ09TAVJU
DescriptionDaikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ09TAVJU. Rated Cooling Capacity: 9,500 Btu/hr
Rated Heating Capacity10,500 Btu/hr
Sensible Capacity6,600 Btu/hr
Net Weight36.4 lb. connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 25/32 inch
Flow Rate317/282/229 CFM (H/M/L)
MountingCeiling
Dimensions10-1/4 x 22-5/8 x 22-5/8 in
ComplianceUniversal Design award winning design
Voltage208/230 V / 60 Hz / 1 Ph.
