DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_FXZQ15TAVJUFXZQ15TAVJU

Daikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ15TAVJU. Rated Cooling Capacity: 15,000 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFXZQ15TAVJU.pdfData sheet

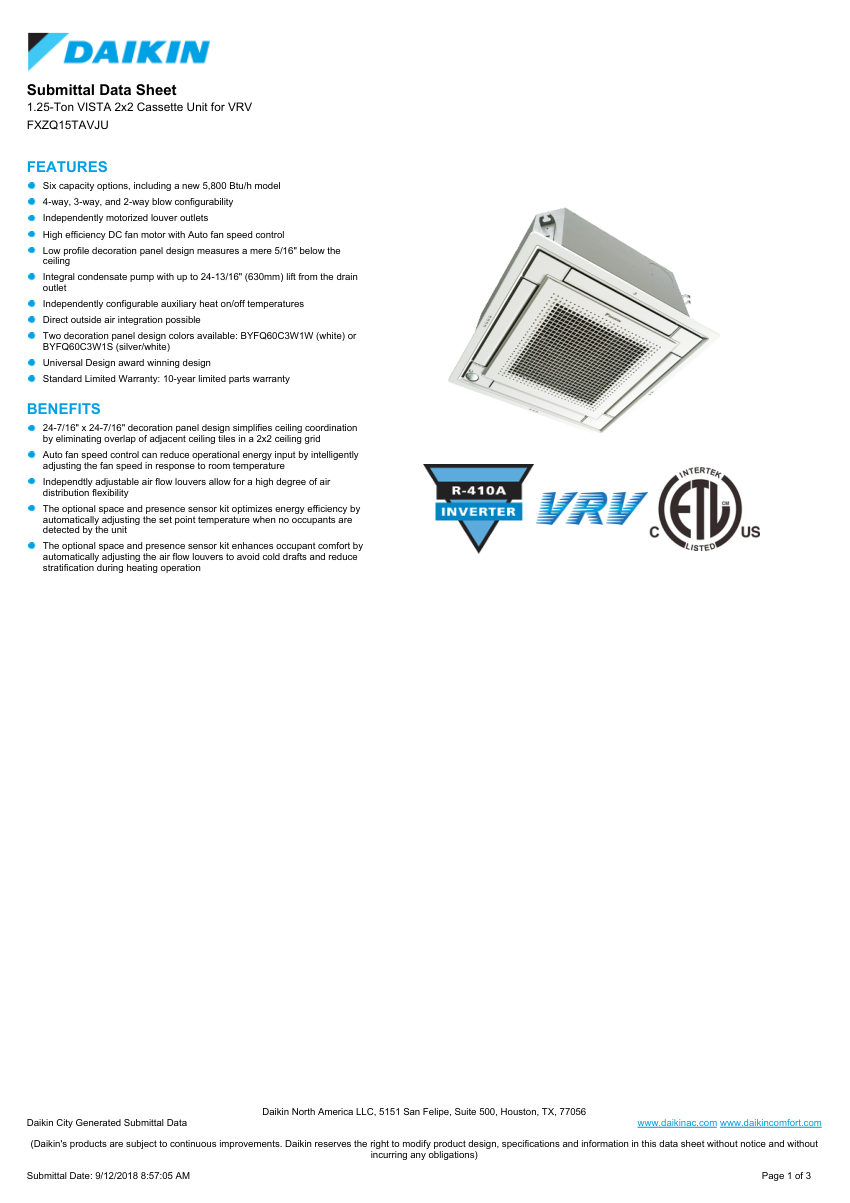

Daikin FXZQ15TAVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
FXZQ15TAVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFXZQ15TAVJU
DescriptionDaikin Cassette Unit (VISTA 2x2 Cassette Unit for VRV). Model FXZQ15TAVJU. Rated Cooling Capacity: 15,000 Btu/hr
Rated Heating Capacity17,000 Btu/hr
Net Weight36.4 lb
Sound Pressure Level37/32/28 dBA (H/M/L). connectionSize: Gas 1/2 inch, Liquid 1/4 inch, Condensate 25/32 inch
Flow Rate405/335/282 CFM (H/M/L)
MountingCeiling
Dimensions10-1/4 x 22-5/8 x 22-5/8 in
Voltage208/230 V / 60 Hz / 1 Ph.
