DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinEM-Presales-RXLQ_TBRXLQ72TBTJA

Daikin Air-cooled VRF Heat Pump (VRV AURORA Heat Pump). Model RXLQ-TBTJA, RXLQ-TBYDA, RXLQ-TBYCA. Capacities: 6, 8, 10 ton single modules; 12, 16, 20 ton multi-module systems; Heating capacity down to -22°F (-30°C) as standard; Inverter based vapor injection compressor; Refrigerant-cooled inverter board operation. material: PE blue fin heat exchanger

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRXLQ72TBTJA.pdfData sheet

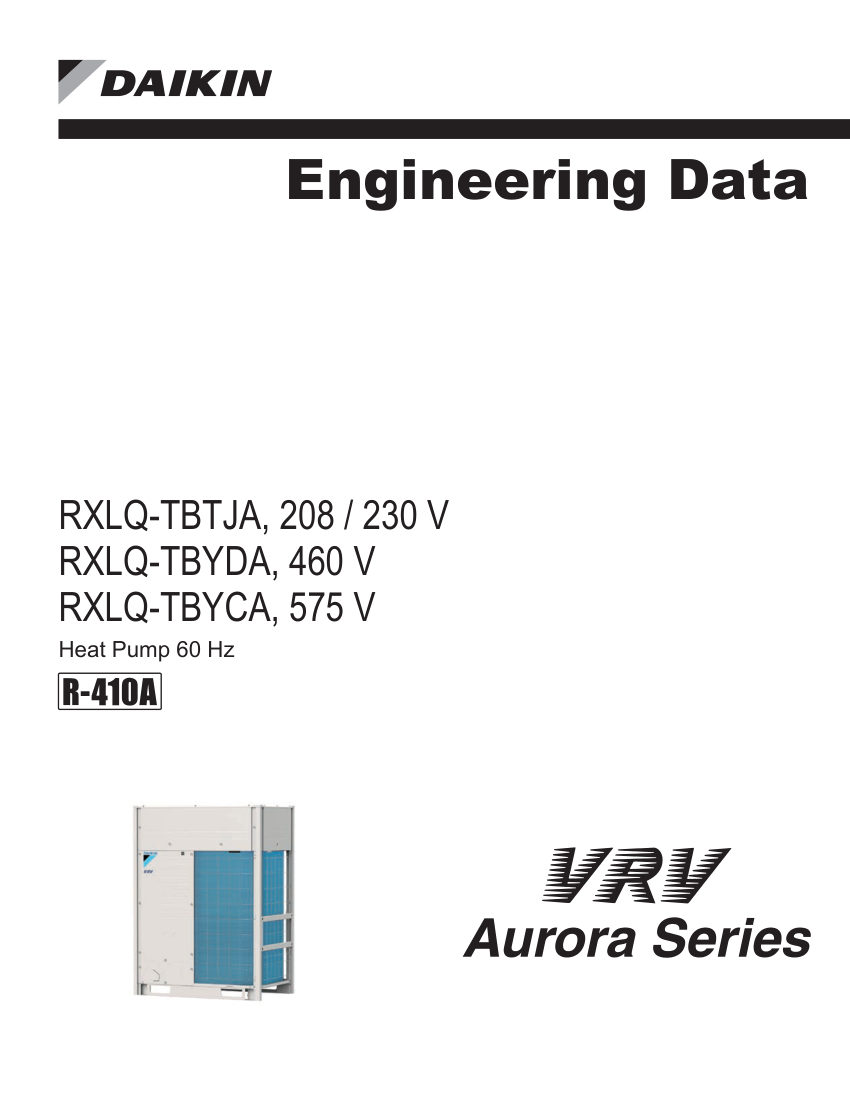

Daikin RXLQ72TBTJA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
RXLQ72TBTJA
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRXLQ72TBTJA
DescriptionDaikin Air-cooled VRF Heat Pump (VRV AURORA Heat Pump). Model RXLQ-TBTJA, RXLQ-TBYDA, RXLQ-TBYCA. Capacities: 6, 8, 10 ton single modules; 12, 16, 20 ton multi-module systems; Heating capacity down to -22°F (-30°C) as standard; Inverter based vapor injection compressor; Refrigerant-cooled inverter board operation. material: PE blue fin heat exchanger
Compliance1000 hours salt spray tested
Voltage208/230 V, 460 V, 575 V.

Also cataloged as: RXLQ96TBTJA, RXLQ120TBTJA, RXLQ144TBTJA, RXLQ192TBTJA, RXLQ240TBTJA, RXLQ72TBYDA, RXLQ96TBYDA, RXLQ120TBYDA, RXLQ144TBYDA, RXLQ192TBYDA, RXLQ240TBYDA
