DaikinSDS-DC_RXYQ216TATJURXYQ216TATJU

Daikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ216TATJU. Rated Cooling Capacity: 206,000 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRXYQ216TATJU.pdfData sheet

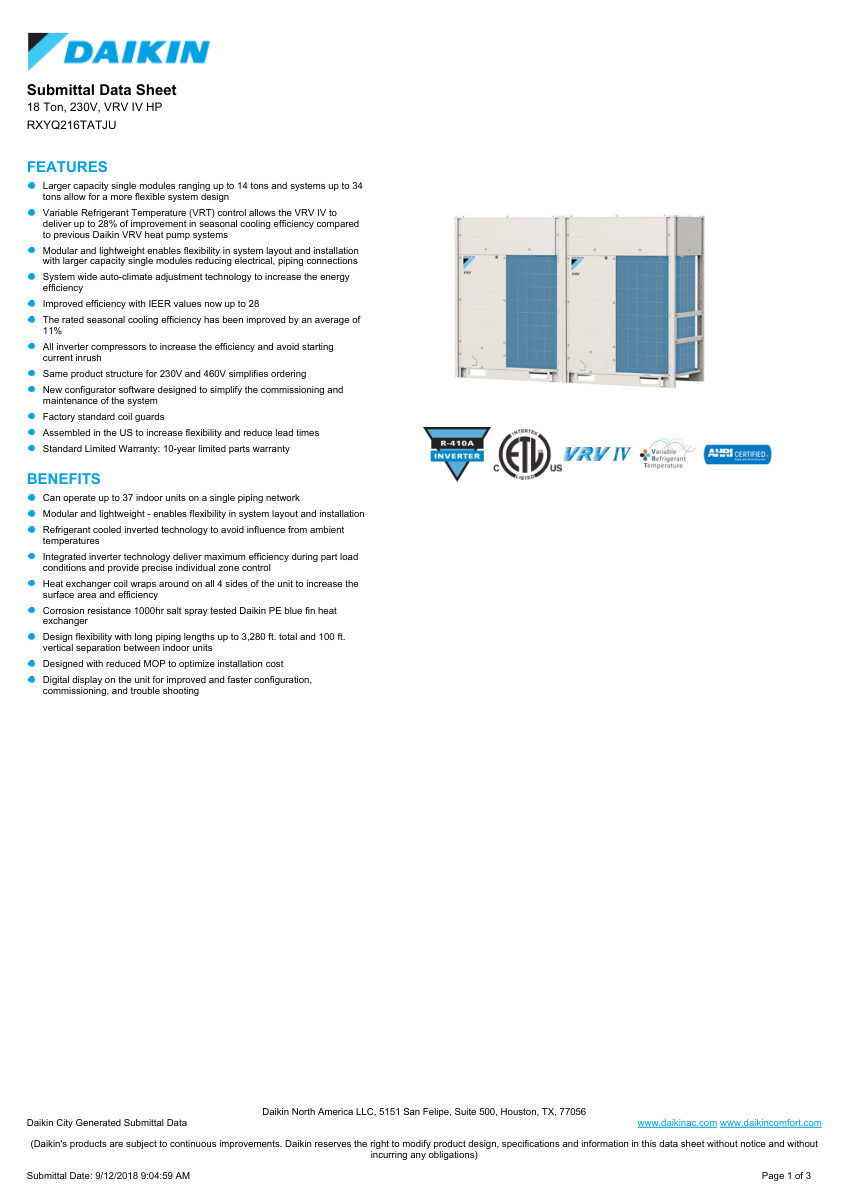

Daikin RXYQ216TATJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
RXYQ216TATJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRXYQ216TATJU
DescriptionDaikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ216TATJU. Rated Cooling Capacity: 206,000 Btu/hr
Rated Heating Capacity230,000 Btu/hr
EER10.70 (Non-Ducted) / 10.90 (Ducted)
IEER20.50 (Non-Ducted) / 21.10 (Ducted). material: Daikin PE blue fin heat exchanger
Connection sizeGas 1-1/8 inch, Liquid 5/8 inch
Flow Rate5827+6286 CFM
Dimensions66-11/16 in H x 48-7/8+48-7/8 in W x 30-3/16 in D
Compliance1000hr salt spray tested
Voltage208-230V / 60Hz / 3Ph.
