DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DC_RXYQ240TATJURXYQ240TATJU

Daikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ240TATJU. Rated Cooling Capacity: 228,000 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRXYQ240TATJU.pdfData sheet

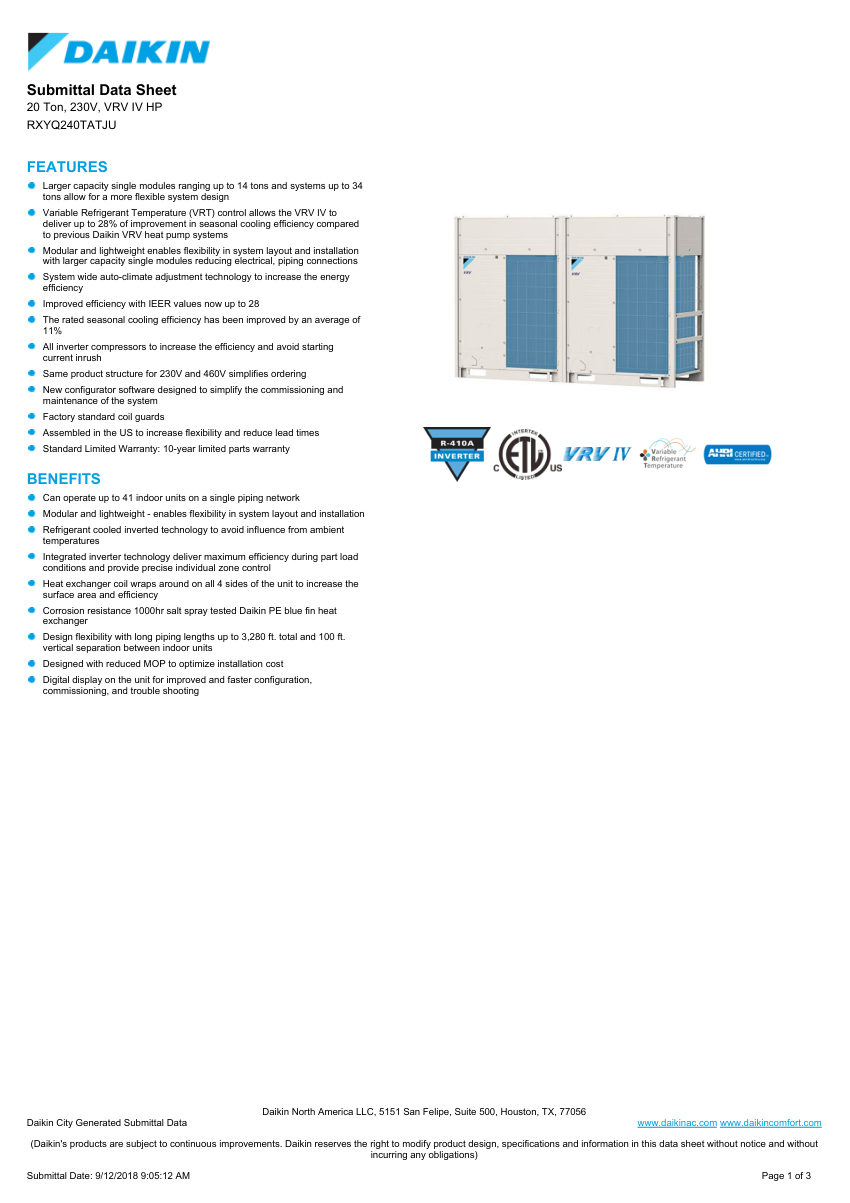

Daikin RXYQ240TATJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
RXYQ240TATJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRXYQ240TATJU
DescriptionDaikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ240TATJU. Rated Cooling Capacity: 228,000 Btu/hr
Rated Heating Capacity256,000 Btu/hr
EER11.00 (Non-Ducted) / 11.20 (Ducted)
Max Indoor Units41. material: PE blue fin heat exchanger
Connection sizeGas 1-3/8 inch, Liquid 5/8 inch
Flow Rate6286+6286 CFM
Dimensions66-11/16 H x 48-7/8+48-7/8 W x 30-3/16 D in
Compliance1000hr salt spray tested
Voltage208-230V / 60Hz / 3Ph.
