DaikinSDS-DC_RXYQ384TATJURXYQ384TATJU

Daikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ384TATJU. Rated Cooling Capacity: 356,000 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRXYQ384TATJU.pdfData sheet

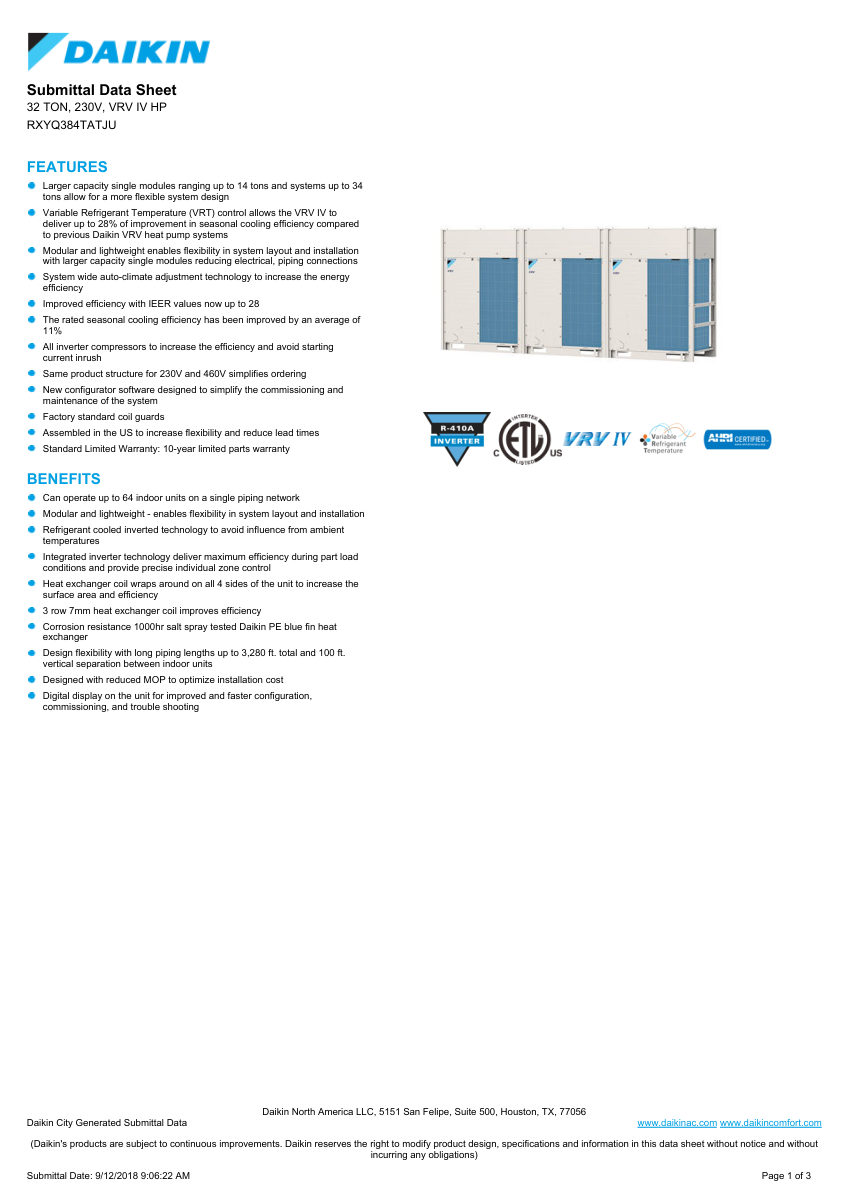

Daikin RXYQ384TATJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
RXYQ384TATJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRXYQ384TATJU
DescriptionDaikin Variable Refrigerant Volume (VRV) Heat Pump Outdoor Unit (VRV IV HP). Model RXYQ384TATJU. Rated Cooling Capacity: 356,000 Btu/hr
Rated Heating Capacity396,000 Btu/hr
EER9.50
IEER21.10 (Non-Ducted). material: PE blue fin heat exchanger
Connection sizeGas 1-5/8 inch, Liquid 3/4 inch
Flow Rate5827+6286+8228 CFM
Dimensions66-11/16 H x 48-7/8+48-7/8+48-7/8 W x 30-3/16 D in
Compliance1000hr salt spray tested
Voltage208-230V / 60Hz / 3Ph.
