DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DMS504C71-1903ASDS-DMS504C71

Daikin LonWorks Interface (HVAC Control Interface). Model DMS504C71. Supports up to 64 indoor unit groups and 128 indoor units; Compatible with up to 10 outdoor units; Uses LonTalk protocol with FT-X1 (78 Kbps Free Topology); DIII-Net communication requires 18AWG-2 stranded, non-shielded wire. dimensions: 10.81 x 10.34 x 2.69 inch (274.57 x 262.13 x 68.33 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-DMS504C71.pdfData sheet

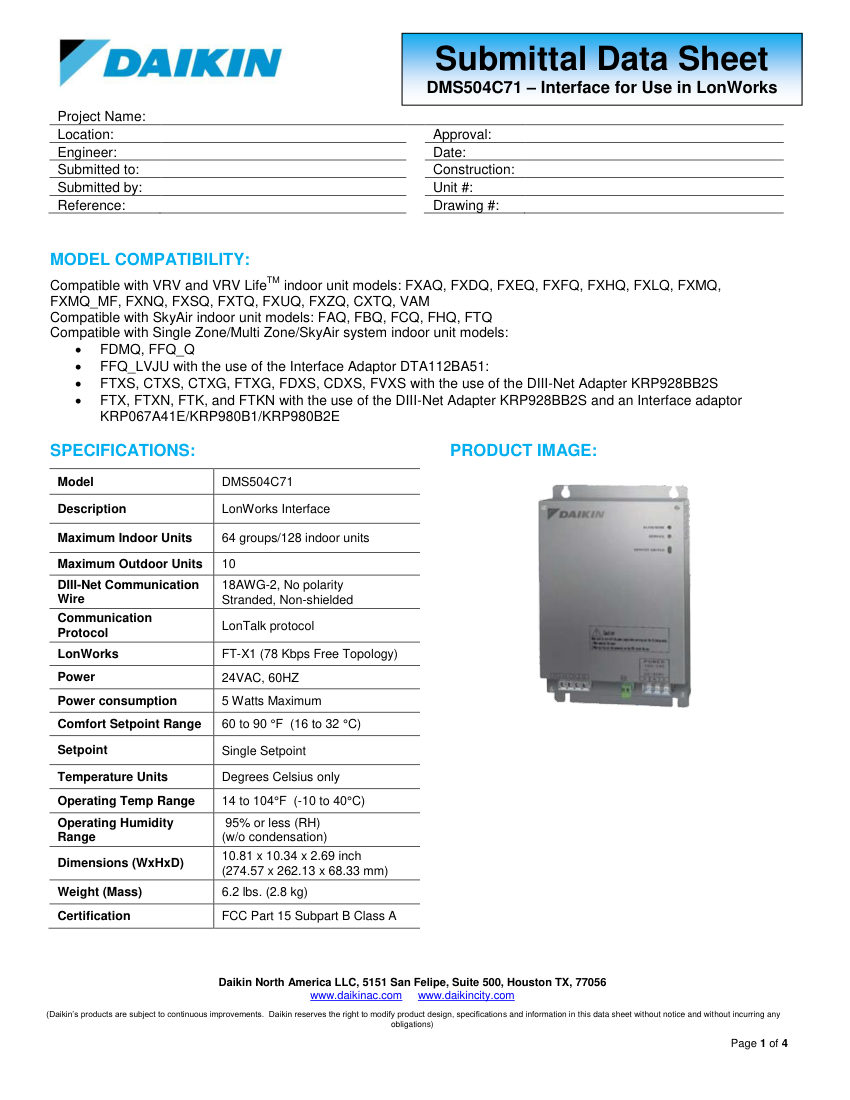

Daikin SDS-DMS504C71 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-DMS504C71
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-DMS504C71
DescriptionDaikin LonWorks Interface (HVAC Control Interface). Model DMS504C71. Supports up to 64 indoor unit groups and 128 indoor units; Compatible with up to 10 outdoor units; Uses LonTalk protocol with FT-X1 (78 Kbps Free Topology); DIII-Net communication requires 18AWG-2 stranded, non-shielded wire. dimensions: 10.81 x 10.34 x 2.69 inch (274.57 x 262.13 x 68.33 mm)
ComplianceFCC Part 15 Subpart B Class A
Voltage24VAC, 60HZ.
