DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-DX14XA1203SDS-DX14XA1203

Daikin Outdoor Unit (Air Conditioner System). Model DX14XA1203A*. 10.0 Ton capacity; IEER 15.2; EER 11.2; Two-Stage Scroll Compressor. material: Galvanized steel cabinet, copper tube/aluminum fin coil

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-DX14XA1203.pdfData sheet

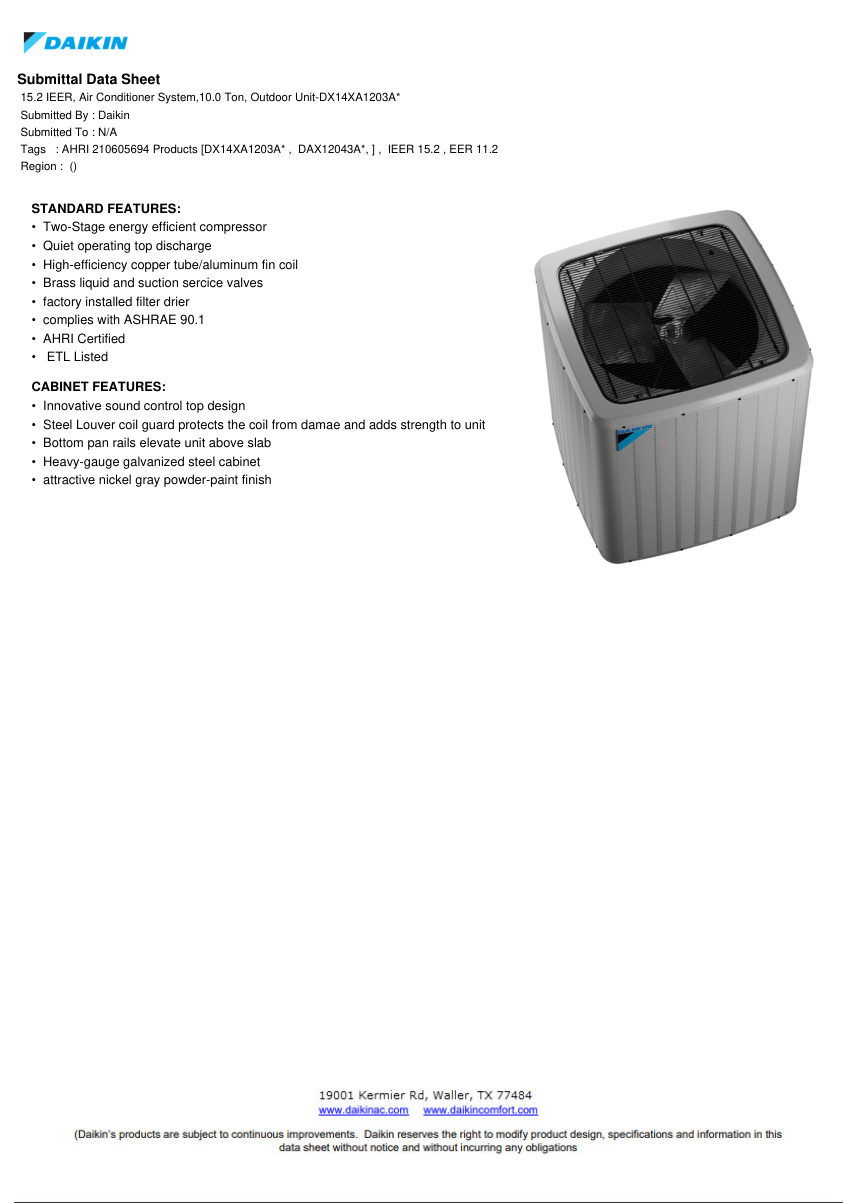

Daikin SDS-DX14XA1203 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-DX14XA1203
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-DX14XA1203
DescriptionDaikin Outdoor Unit (Air Conditioner System). Model DX14XA1203A*. 10.0 Ton capacity; IEER 15.2; EER 11.2; Two-Stage Scroll Compressor. material: Galvanized steel cabinet, copper tube/aluminum fin coil
Connection sizeSuction 1-3/8 in, Liquid 5/8 in
End connectionBrass liquid and suction service valves
FinishNickel gray powder-paint
MountingBottom pan rails
Dimensions41.5 x 35.5 x 35.5 in.
