DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-FXSQ05TBVJUSDS-FXSQ05TBVJU

Daikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ05TBVJU. 0.5-Ton capacity (5,800 Btu/h cooling); 5-speed DC fan motor with Auto fan speed; Integral condensate pump with 25-5/16 in lift; Sound levels as low as 28 dB(A). connectionSize: Gas 1/2 in, Liquid 1/4 in, Condensate 1-1/4 in

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-FXSQ05TBVJU.pdfData sheet

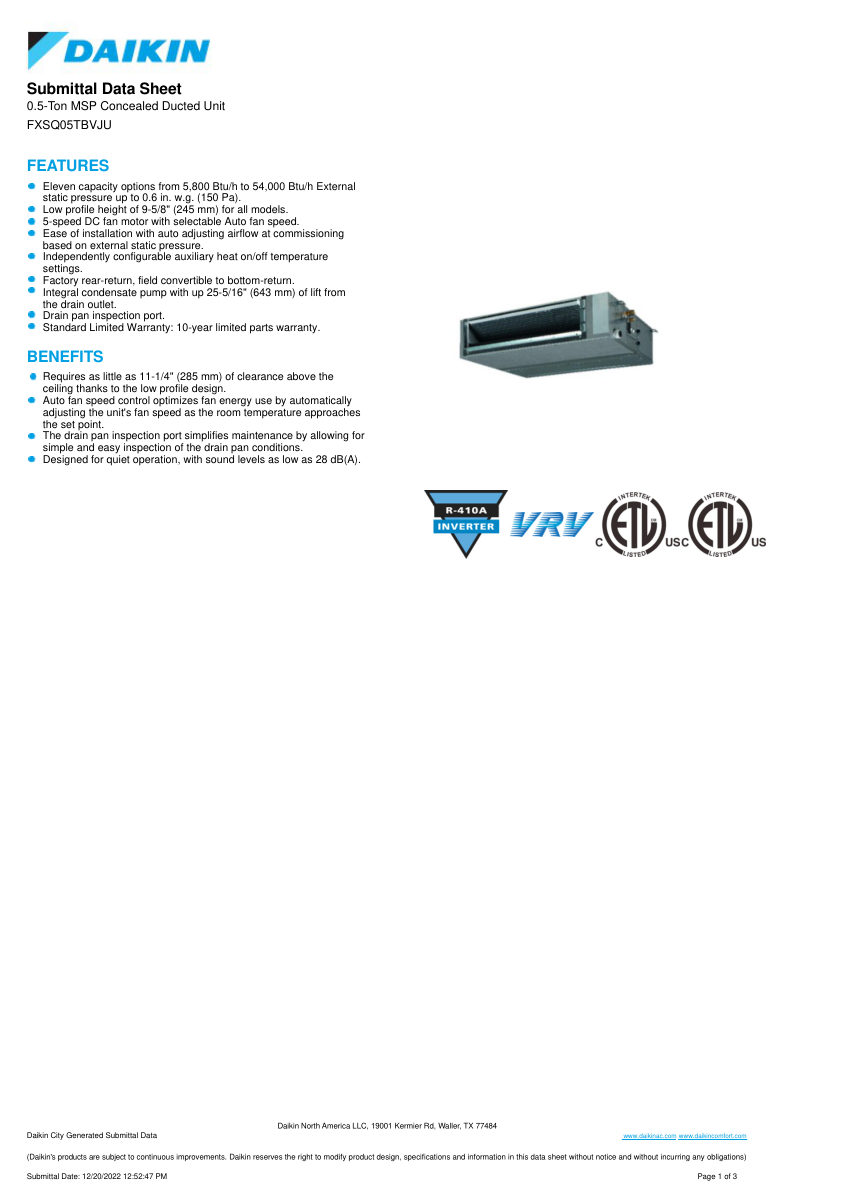

Daikin SDS-FXSQ05TBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-FXSQ05TBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-FXSQ05TBVJU
DescriptionDaikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ05TBVJU. 0.5-Ton capacity (5,800 Btu/h cooling); 5-speed DC fan motor with Auto fan speed; Integral condensate pump with 25-5/16 in lift; Sound levels as low as 28 dB(A). connectionSize: Gas 1/2 in, Liquid 1/4 in, Condensate 1-1/4 in
Pressure RatingExternal static pressure up to 0.6 in. w.g.
Flow Rate281 CFM
MountingConcealed Ducted
Dimensions9-11/16 x 21-11/16 x 31-1/2 in
Voltage208/230 V / 60 Hz / 1 Ph.
