DIV 23 · HVACHVACCUT SHEET INDEXED
DaikinSDS-FXSQ09TBVJUSDS-FXSQ09TBVJU
Daikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ09TBVJU. 0.75-Ton capacity
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Daikin
- Catalog no.
- SDS-FXSQ09TBVJU
- Product type
- HVAC
- MasterFormat
- 23

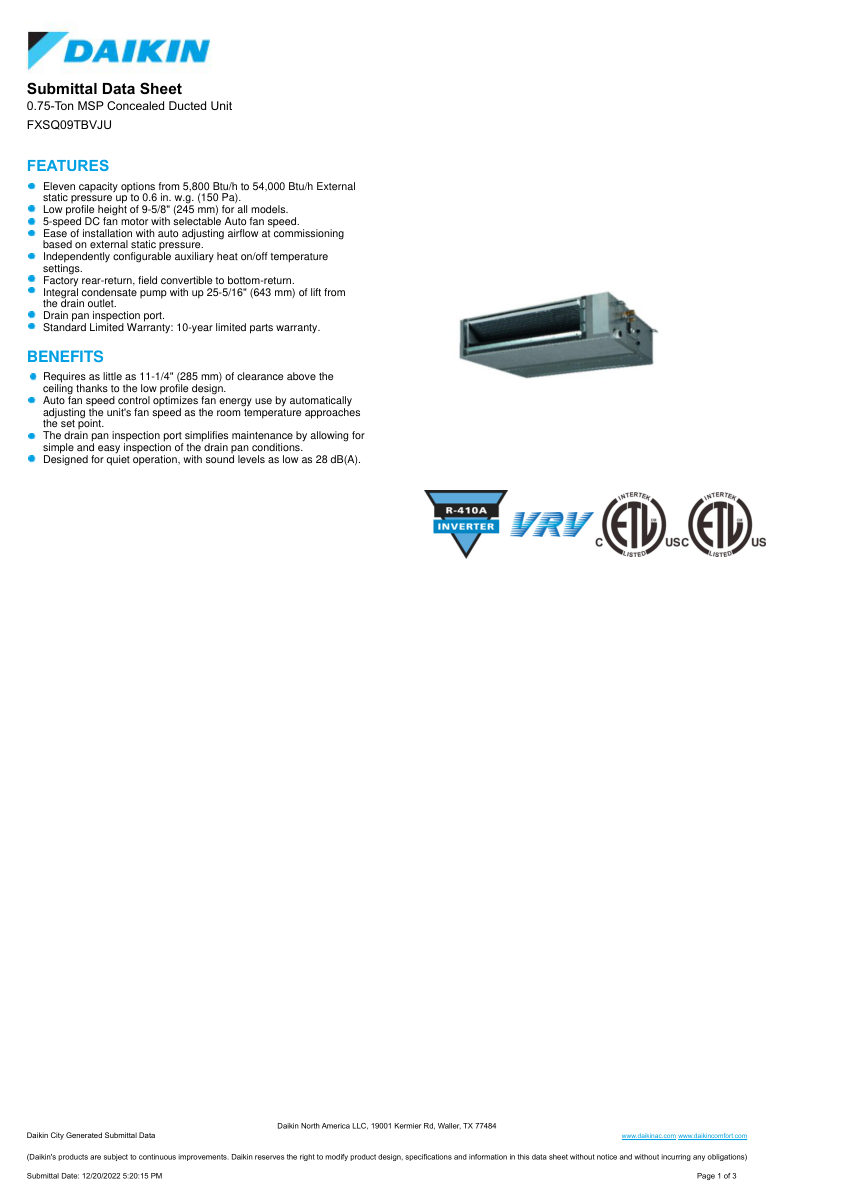

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SDS-FXSQ09TBVJU |
|---|---|
| Description | Daikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ09TBVJU. 0.75-Ton capacity |
| Rated Cooling Capacity | 9,500 Btu/hr |
| Rated Heating Capacity | 10,500 Btu/hr; 5-speed DC fan motor with Auto fan speed. connectionSize: 1/2 inch gas, 1/4 inch liquid, 1-1/4 inch condensate |
| Pressure Rating | 0.6 in. w.g. max external static pressure |
| Flow Rate | 318 CFM |
| Mounting | Concealed Ducted |
| Dimensions | 9-11/16 x 21-11/16 x 31-1/2 in |
| Voltage | 208/230 V / 60 Hz / 1 Ph. |
