DaikinSDS-FXSQ12TBVJUSDS-FXSQ12TBVJU

Daikin Concealed Ducted Indoor Unit (Mini-Split). Model FXSQ12TBVJU. Rated Cooling Capacity: 12,000 Btu/hr

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-FXSQ12TBVJU.pdfData sheet

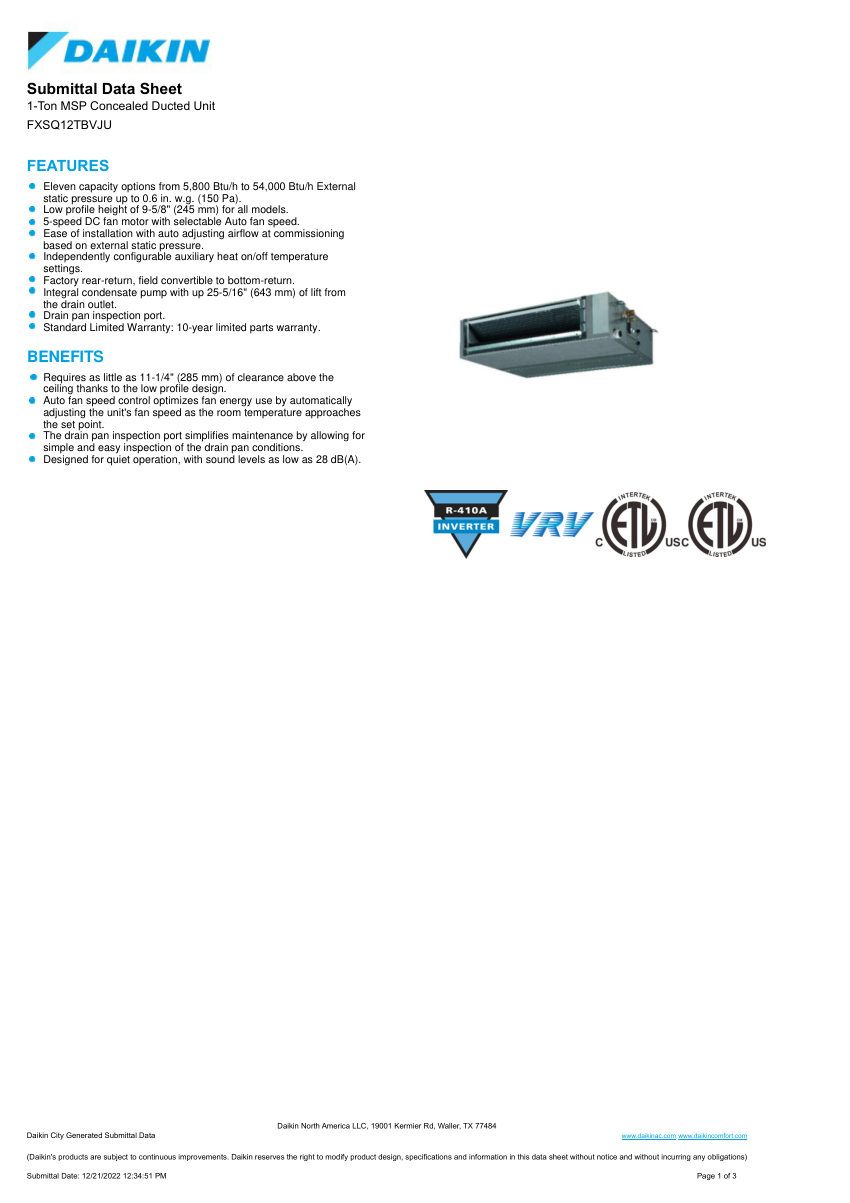

Daikin SDS-FXSQ12TBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-FXSQ12TBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-FXSQ12TBVJU
DescriptionDaikin Concealed Ducted Indoor Unit (Mini-Split). Model FXSQ12TBVJU. Rated Cooling Capacity: 12,000 Btu/hr
Rated Heating Capacity13,500 Btu/hr; 5-speed DC fan motor with Auto fan speed; Integral condensate pump with 25-5/16 in lift. connectionSize: Gas 1/2 in, Liquid 1/4 in, Condensate 1-1/4 in
Pressure RatingMax External Static Pressure 0.6 in. w.g.
Flow Rate335 CFM
MountingConcealed Ducted
Dimensions9-11/16 x 21-11/16 x 31-1/2 in
Voltage208/230 V / 60 Hz / 1 Ph.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
