DaikinSDS-FXSQ18TBVJUSDS-FXSQ18TBVJU

Daikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ18TBVJU. 18,000 Btu/hr rated cooling capacity; 20,000 Btu/hr rated heating capacity; 5-speed DC fan motor with auto speed control; Integral condensate pump with 25-5/16 in lift. connectionSize: 1/2 inch gas, 1/4 inch liquid, 1-1/4 inch condensate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-FXSQ18TBVJU.pdfData sheet

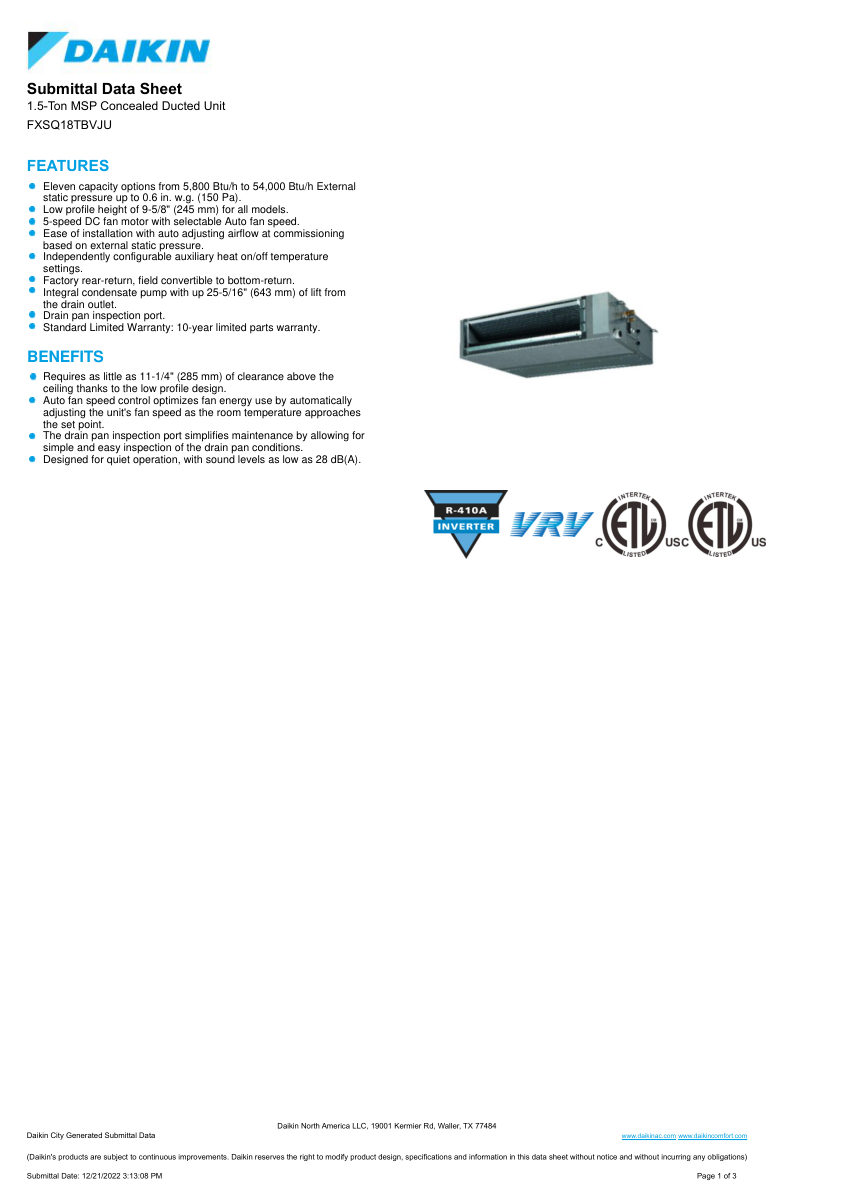

Daikin SDS-FXSQ18TBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-FXSQ18TBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-FXSQ18TBVJU
DescriptionDaikin Concealed Ducted Indoor Unit (Mini-Split System). Model FXSQ18TBVJU. 18,000 Btu/hr rated cooling capacity; 20,000 Btu/hr rated heating capacity; 5-speed DC fan motor with auto speed control; Integral condensate pump with 25-5/16 in lift. connectionSize: 1/2 inch gas, 1/4 inch liquid, 1-1/4 inch condensate
Pressure Rating0.2 inWg rated, 0.6 inWg max external static pressure
Flow Rate600 CFM
MountingConcealed Ducted
Dimensions9-11/16 x 39-3/8 x 31-1/2 in
Voltage208/230 V, 60 Hz, 1 Ph.
