DIV 23 · HVACHVACCUT SHEET INDEXED

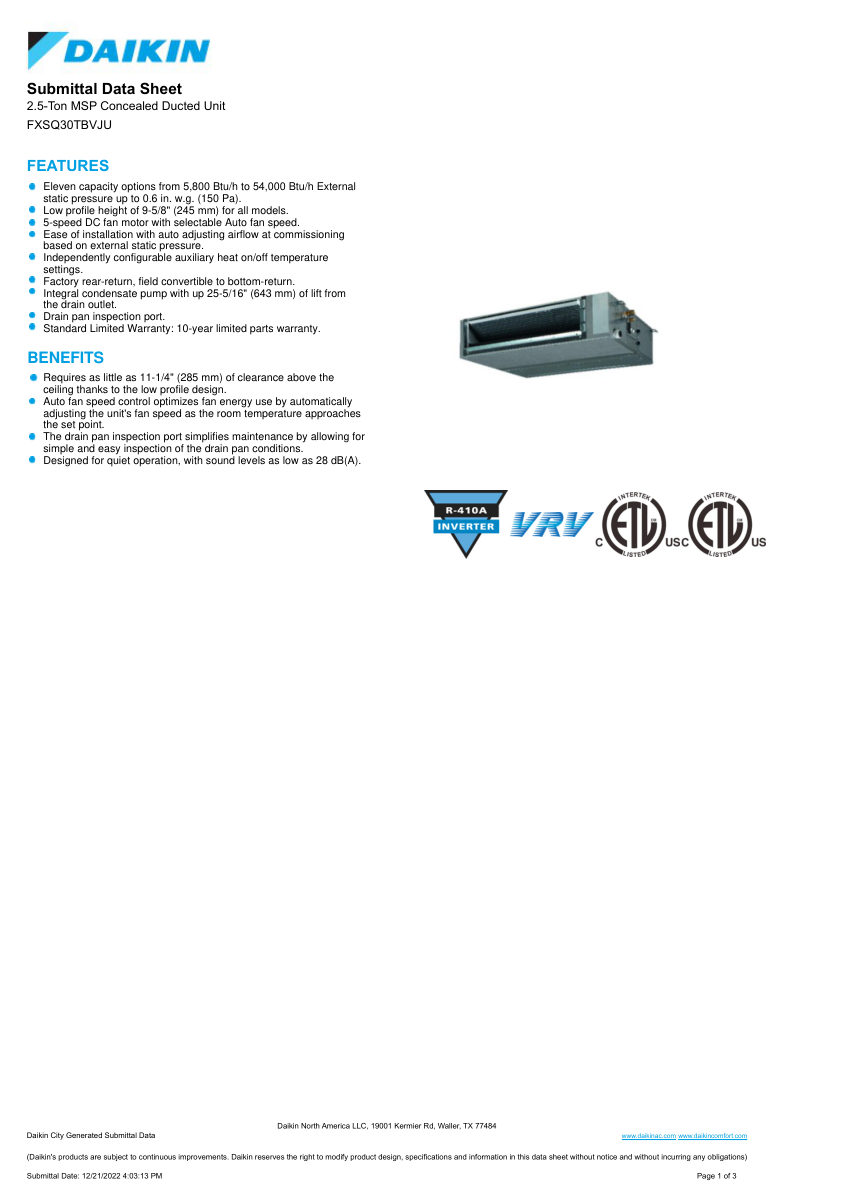

DaikinSDS-FXSQ30TBVJUSDS-FXSQ30TBVJU
Daikin Concealed Ducted Unit (HVAC). Model FXSQ30TBVJU. Rated Cooling Capacity: 30,000 Btu/hr
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Daikin
- Catalog no.
- SDS-FXSQ30TBVJU
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SDS-FXSQ30TBVJU |
|---|---|
| Description | Daikin Concealed Ducted Unit (HVAC). Model FXSQ30TBVJU. Rated Cooling Capacity: 30,000 Btu/hr |
| Rated Heating Capacity | 34,000 Btu/hr; 5-speed DC fan motor with selectable Auto fan speed; Integral condensate pump with up to 25-5/16 in (643 mm) lift. connectionSize: Gas 5/8 in, Liquid 3/8 in, Condensate 1-1/4 in |
| Pressure Rating | External static pressure up to 0.6 in. w.g. (150 Pa) |
| Flow Rate | 812 CFM |
| Mounting | Concealed Ducted |
| Dimensions | 9-11/16 x 39-3/8 x 31-1/2 in |
| Voltage | 208/230 V / 60 Hz / 1 Ph. |
