DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinSDS-FXSQ54TBVJUSDS-FXSQ54TBVJU

Daikin Concealed Ducted Unit (HVAC). Model FXSQ54TBVJU. 4.5-Ton capacity (54,000 Btu/h cooling); Low profile height of 9-5/8 in (245 mm); 5-speed DC fan motor with Auto fan speed; Integral condensate pump with 25-5/16 in lift. connectionSize: Gas 5/8 in, Liquid 3/8 in, Condensate 1-1/4 in

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSDS-FXSQ54TBVJU.pdfData sheet

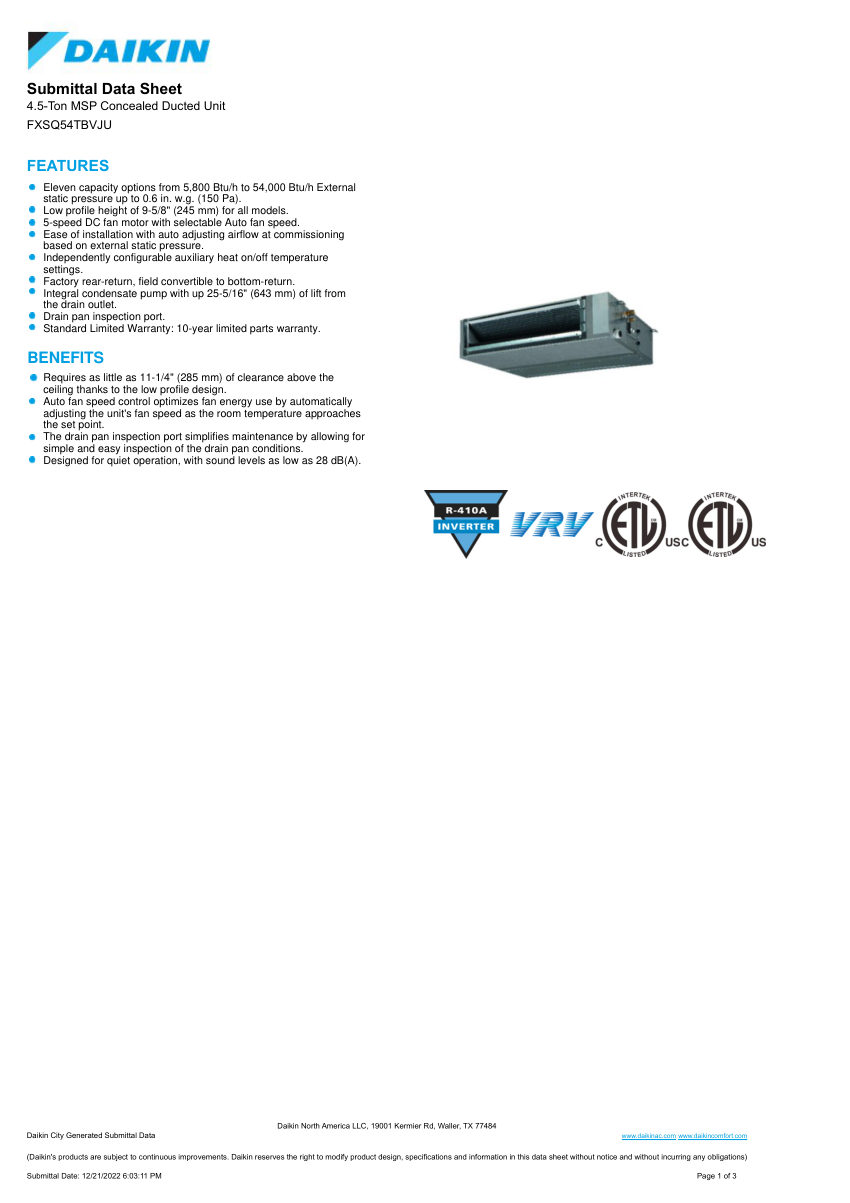

Daikin SDS-FXSQ54TBVJU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
SDS-FXSQ54TBVJU
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSDS-FXSQ54TBVJU
DescriptionDaikin Concealed Ducted Unit (HVAC). Model FXSQ54TBVJU. 4.5-Ton capacity (54,000 Btu/h cooling); Low profile height of 9-5/8 in (245 mm); 5-speed DC fan motor with Auto fan speed; Integral condensate pump with 25-5/16 in lift. connectionSize: Gas 5/8 in, Liquid 3/8 in, Condensate 1-1/4 in
Pressure RatingMax 0.56 inWg
Flow Rate1377 CFM
MountingConcealed Ducted
Dimensions9-11/16 x 61 x 31-1/2 in
Voltage208/230 V / 60 Hz / 1 Ph.
