DIV 23 · HVACHVACCUT SHEET INDEXED

DaikinTP-110

Daikin Long Line Set Technical Publication (HVAC). Model AG-TP-110_T9LI. Applies to R-32 split systems with 18,000 to 60,000 Btuh capacity; Covers line sets exceeding 80 feet (24.4 m) in actual length; Requires 3/8" liquid line size for most residential applications; Mandates 40W crankcase heater and hard start assist kit if not factory installed. connectionSize: 3/8" liquid line (standard), 1/4" or 5/16" (exceptions)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTP-110.pdfData sheet

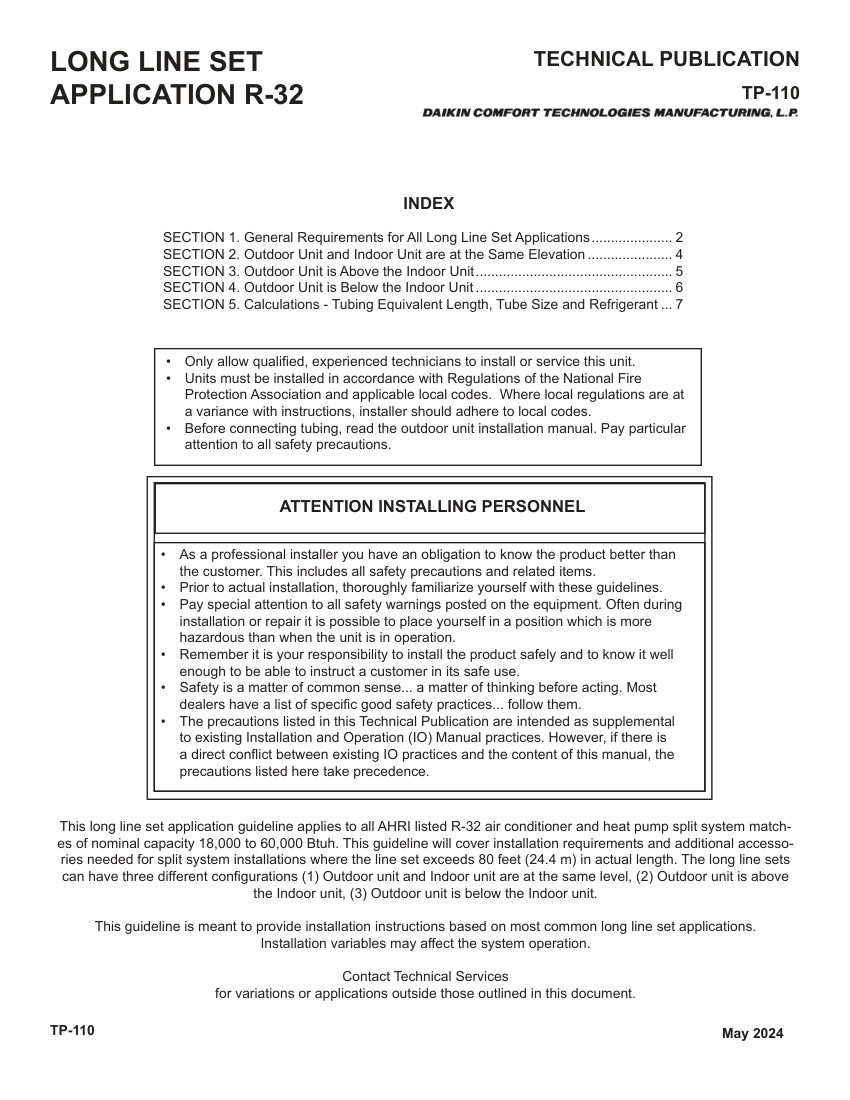

Daikin TP-110 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Daikin
Catalog no.
TP-110
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTP-110
DescriptionDaikin Long Line Set Technical Publication (HVAC). Model AG-TP-110_T9LI. Applies to R-32 split systems with 18,000 to 60,000 Btuh capacity; Covers line sets exceeding 80 feet (24.4 m) in actual length; Requires 3/8" liquid line size for most residential applications; Mandates 40W crankcase heater and hard start assist kit if not factory installed. connectionSize: 3/8" liquid line (standard), 1/4" or 5/16" (exceptions)
ComplianceAHRI listed, NFPA regulations.
