Danfoss082H5005
The Danfoss AMV 120 NL-1 is a 3-point triac control actuator with end position indication, designed for assembly with AB-QM pressure independent control valves from 1/2” to 1-1/4” sizes. It is applied in hot or chilled water systems for applications such as fan coil units, VAV, and induction units. Key features include overload and gap functions, maintenance-free operation, and cULus listing for plenum installations.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Danfoss
- Catalog no.
- 082H5005
- Product type
- Mechanical Controls
- MasterFormat
- 23

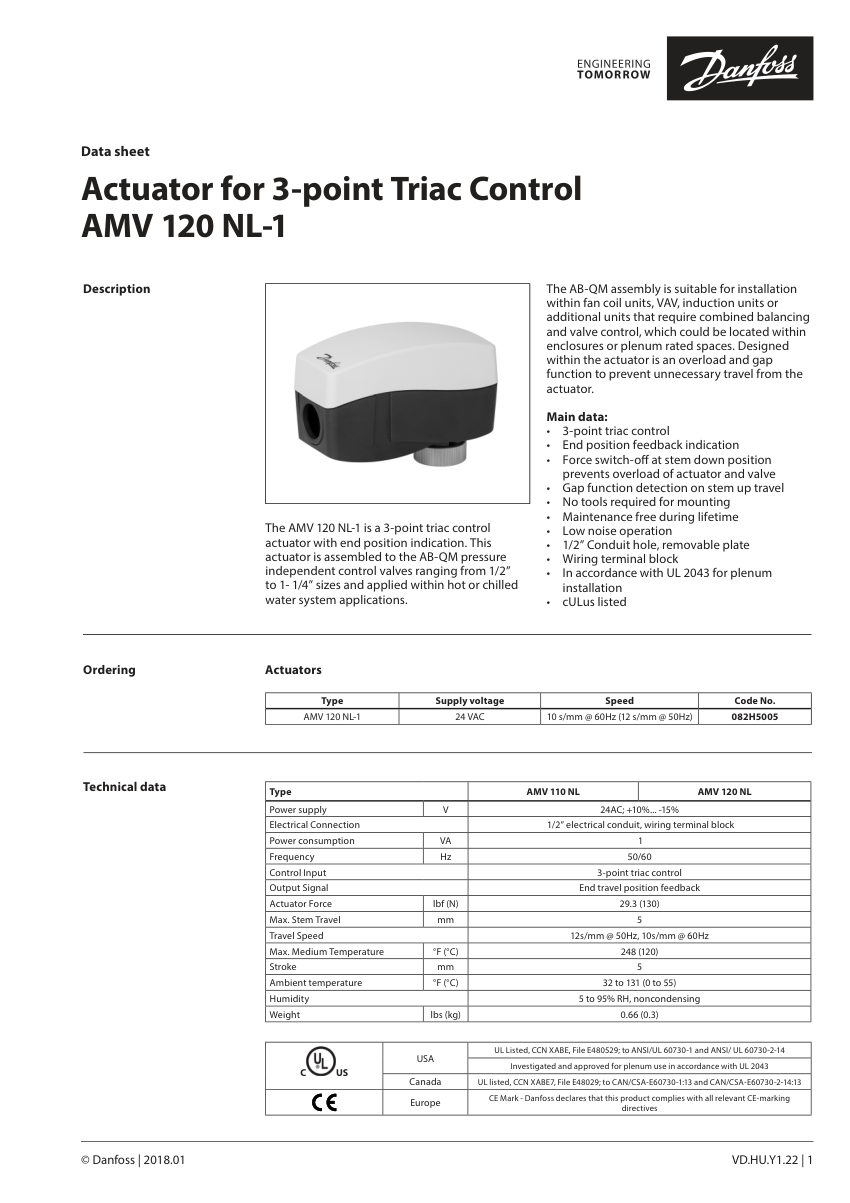

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 082H5005 |
|---|---|
| Description | The Danfoss AMV 120 NL-1 is a 3-point triac control actuator with end position indication, designed for assembly with AB-QM pressure independent control valves from 1/2” to 1-1/4” sizes. It is applied in hot or chilled water systems for applications such as fan coil units, VAV, and induction units. Key features include overload and gap functions, maintenance-free operation, and cULus listing for plenum installations. |
Also cataloged as: AMV-120-NL-1, AMV-110-NL, AMV-120-NL
