Engineered for ANSI B93.15/NFPA interchangeability with the durability required for heavy-duty applications. Gland drains are primarily used for long stroke cylinders (over 30 inches) and when extended speed exceeds retract speed, returning accumulated fluid between the rod seal and wiper to tank. This feature is valuable in servo applications, for ultralow leakage requirements, or for remote visual monitoring of rod seal leakage for preventive maintenance.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDanfoss-Technical-Document---AI512673189312en-000101.pdfData sheet

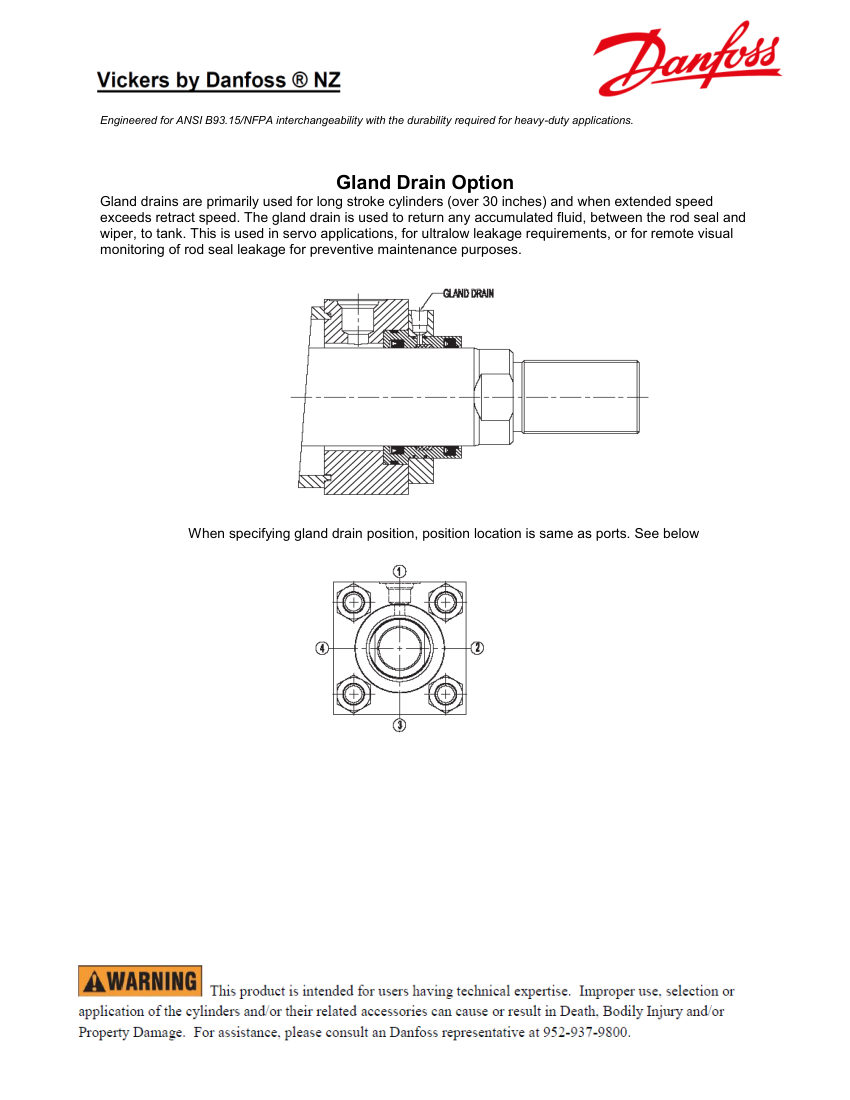

Danfoss Danfoss Technical Document - AI512673189312en-000101 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Danfoss
Catalog no.
Danfoss Technical Document - AI512673189312en-000101
Product type
Mechanical Controls
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDanfoss Technical Document - AI512673189312en-000101
DescriptionEngineered for ANSI B93.15/NFPA interchangeability with the durability required for heavy-duty applications. Gland drains are primarily used for long stroke cylinders (over 30 inches) and when extended speed exceeds retract speed, returning accumulated fluid between the rod seal and wiper to tank. This feature is valuable in servo applications, for ultralow leakage requirements, or for remote visual monitoring of rod seal leakage for preventive maintenance.
